Document Ref 909342-001 Rev 11 Page 2-17
Quantium 410 Installation Manual Site Preparation
1.5" pipe with
male thread
Flexi kit 906637 available
containing:-
Flexible tube 380mm x 1.5",
Flange,O-ring & screws
77
70
214
50
90
Adaptor
903466-001
required for 2" pipe
2" pipe with
male thread
M6 (2x)

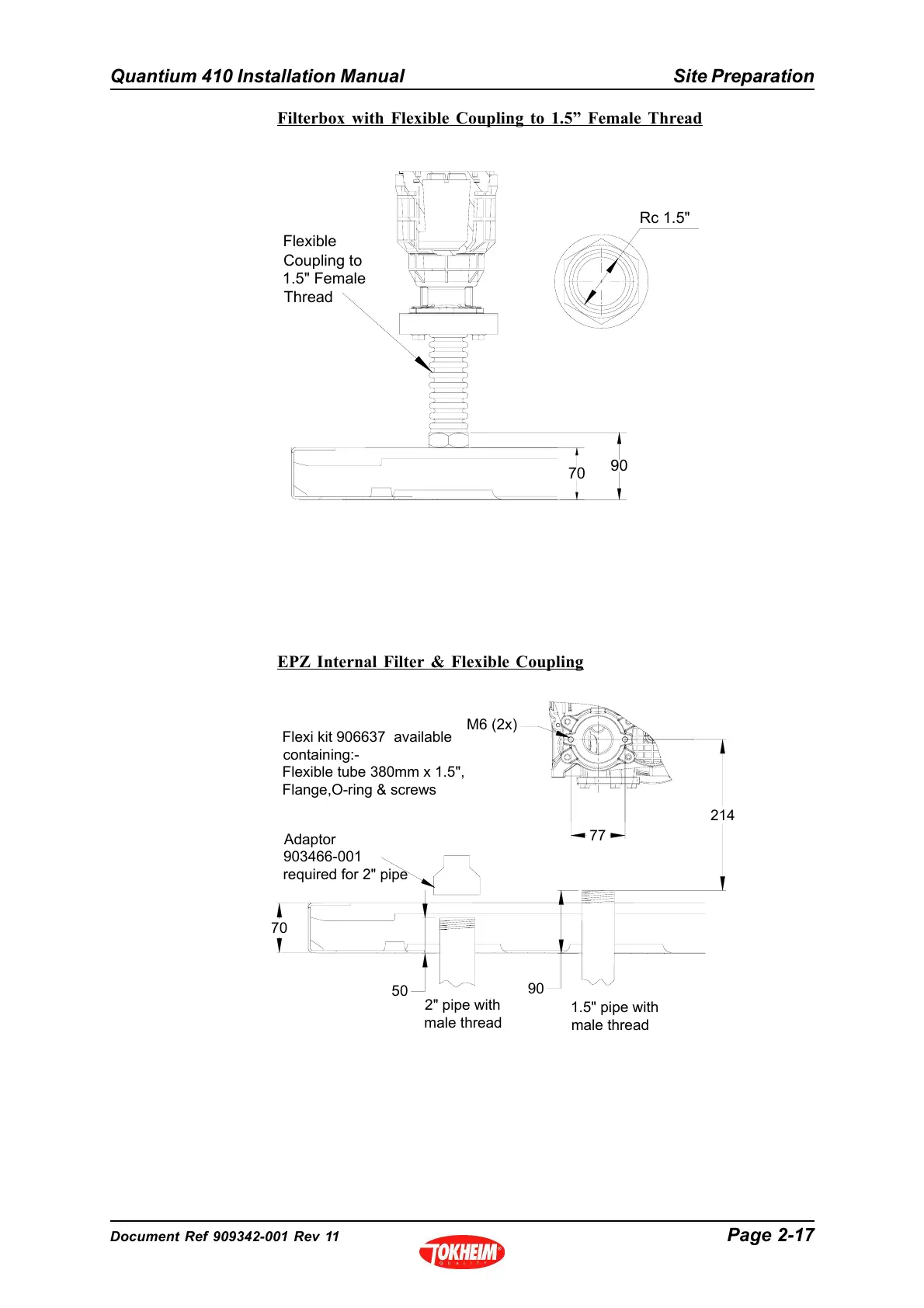

EPZ Internal Filter & Flexible Coupling
Filterbox with Flexible Coupling to 1.5” Female Thread
Flexible
Coupling to
1.5" Female
Thread
Rc 1.5"
90
70
