Page 2-16 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual
Flexwell Installation Kit (901928)
with 1.5" female coupling
70
116.5
90
201
KPS
BRUGG
Flexwell Installation
Kit (940480) with 2"
female coupling

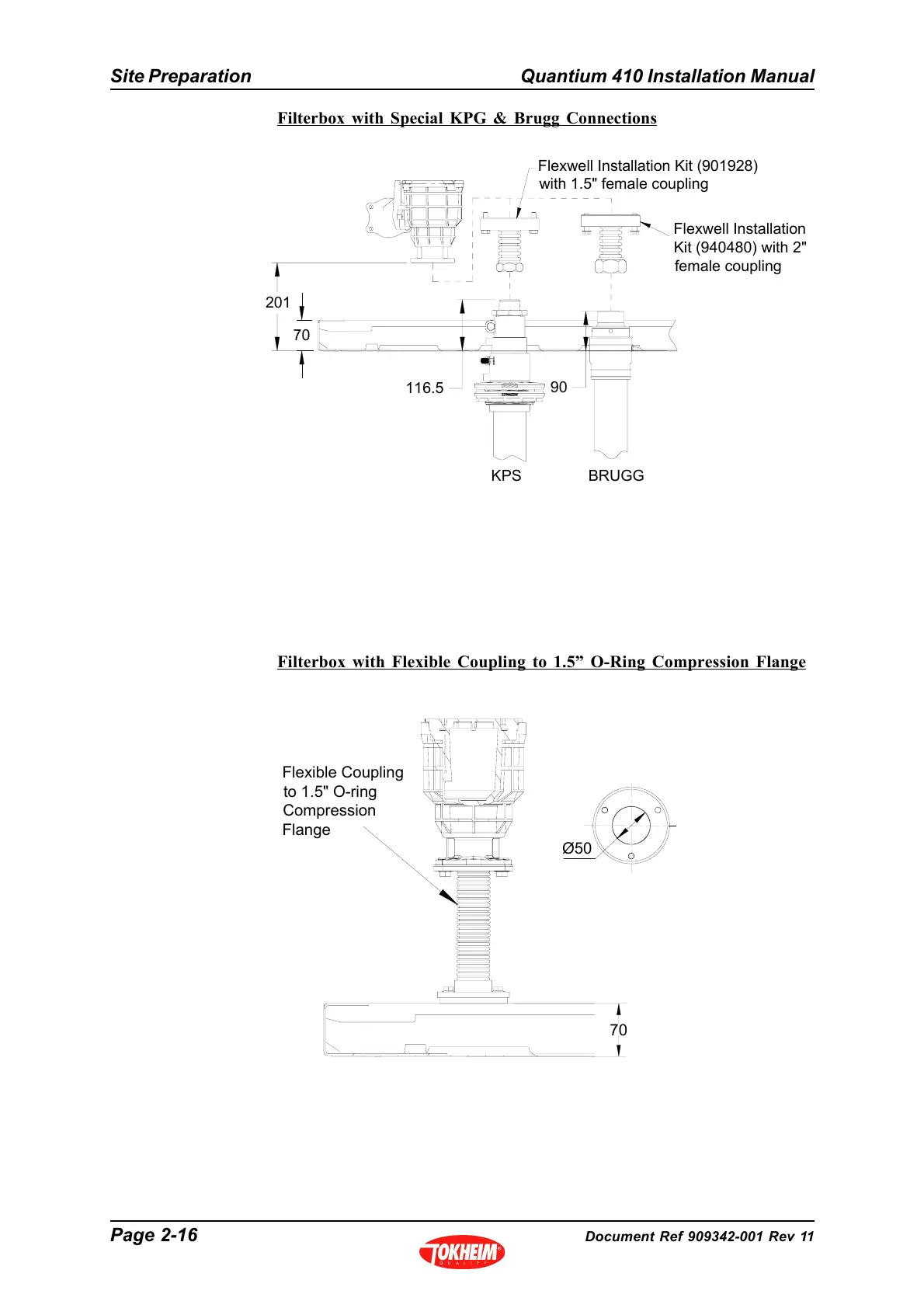

Filterbox with Special KPG & Brugg Connections
70
Flexible Coupling
to 1.5" O-ring
Compression
Flange
Ø50
Filterbox with Flexible Coupling to 1.5” O-Ring Compression Flange
