Tokheim QUANTIUM 410 - Submerged Connections

Page 2-24 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual

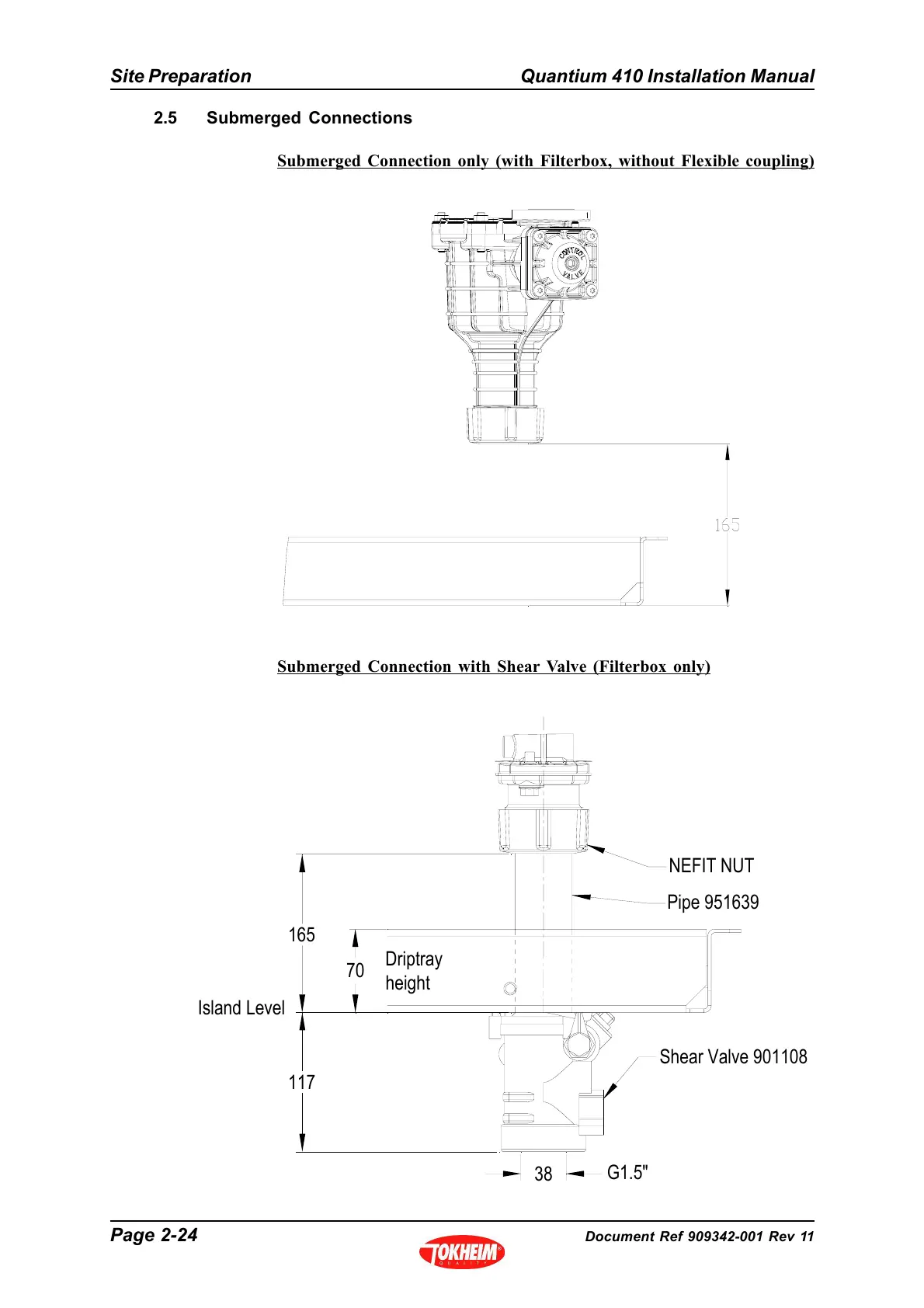

Submerged Connection only (with Filterbox, without Flexible coupling)
Submerged Connection with Shear Valve (Filterbox only)
38
70
Island Level
117
Driptray
height
G1.5"
Shear Valve 901108
NEFIT NUT
Pipe 951639
165
2.5 Submerged Connections
