Document Ref 909342-001 Rev 11 Page 4-5
Quantium 410 Installation Manual Packaging & Handling

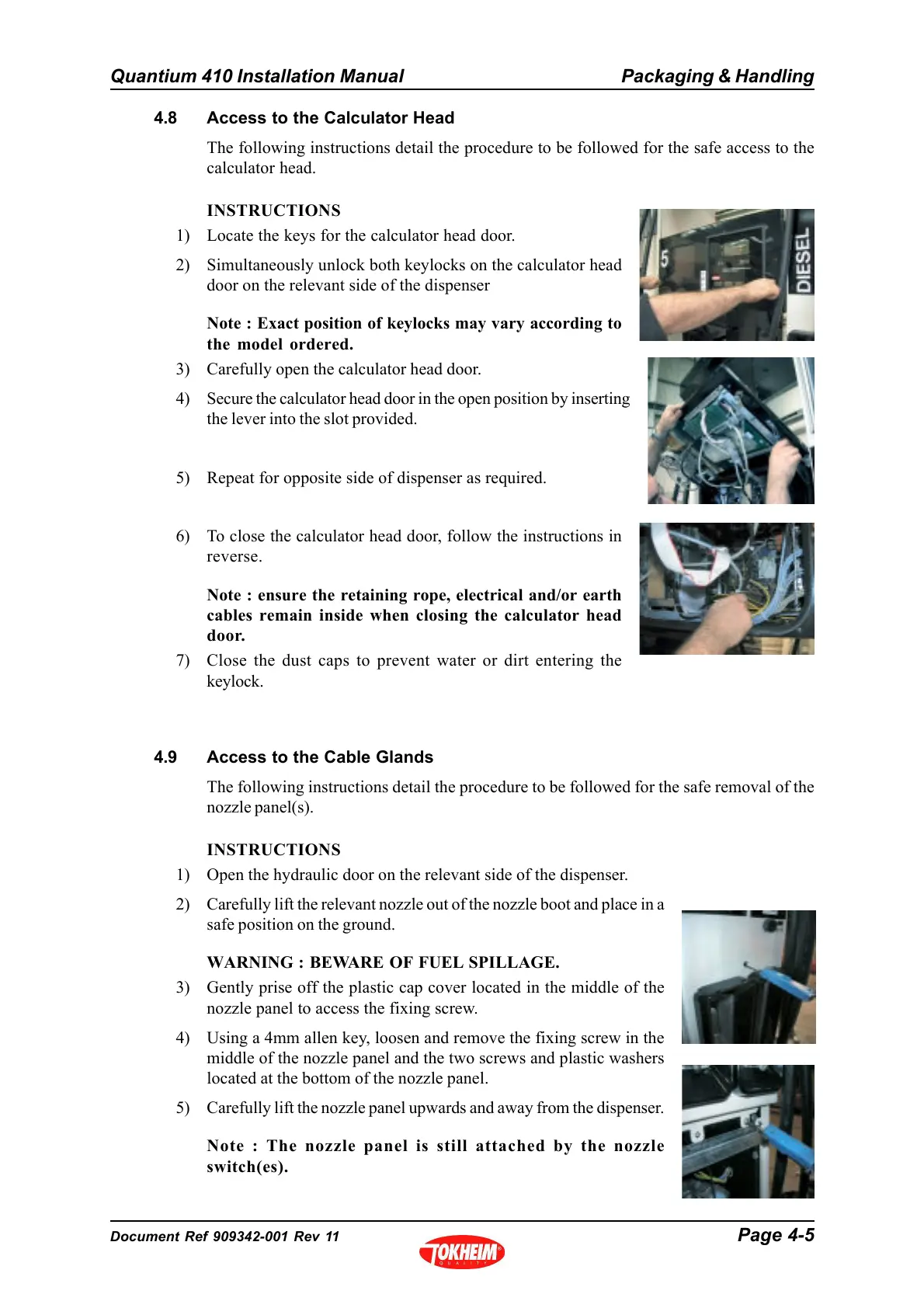

4.8 Access to the Calculator Head
The following instructions detail the procedure to be followed for the safe access to the
calculator head.
INSTRUCTIONS
1) Locate the keys for the calculator head door.
2) Simultaneously unlock both keylocks on the calculator head
door on the relevant side of the dispenser
Note : Exact position of keylocks may vary according to
the model ordered.
3) Carefully open the calculator head door.
4) Secure the calculator head door in the open position by inserting
the lever into the slot provided.
5) Repeat for opposite side of dispenser as required.
6) To close the calculator head door, follow the instructions in
reverse.
Note : ensure the retaining rope, electrical and/or earth
cables remain inside when closing the calculator head
door.
7) Close the dust caps to prevent water or dirt entering the
keylock.
4.9 Access to the Cable Glands
The following instructions detail the procedure to be followed for the safe removal of the
nozzle panel(s).
INSTRUCTIONS
1) Open the hydraulic door on the relevant side of the dispenser.
2) Carefully lift the relevant nozzle out of the nozzle boot and place in a
safe position on the ground.
WARNING : BEWARE OF FUEL SPILLAGE.
3) Gently prise off the plastic cap cover located in the middle of the
nozzle panel to access the fixing screw.
4) Using a 4mm allen key, loosen and remove the fixing screw in the
middle of the nozzle panel and the two screws and plastic washers
located at the bottom of the nozzle panel.
5) Carefully lift the nozzle panel upwards and away from the dispenser.
Note : The nozzle panel is still attached by the nozzle
switch(es).
