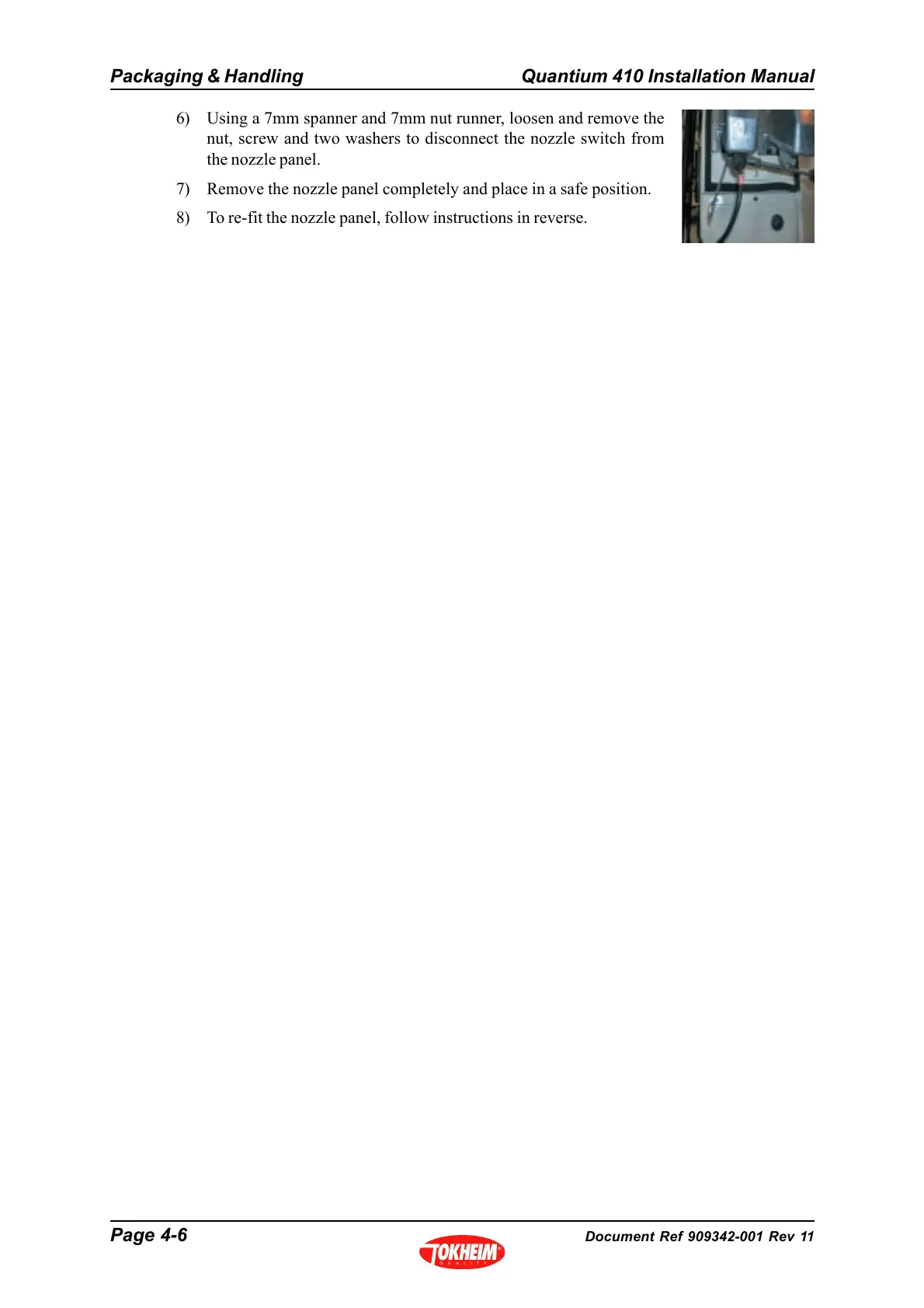

Page 4-6 Document Ref 909342-001 Rev 11
Packaging & Handling Quantium 410 Installation Manual
6) Using a 7mm spanner and 7mm nut runner, loosen and remove the
nut, screw and two washers to disconnect the nozzle switch from
the nozzle panel.
7) Remove the nozzle panel completely and place in a safe position.
8) To re-fit the nozzle panel, follow instructions in reverse.
