Tokheim QUANTIUM 410 - Flexible Connection (Suction Only)

Document Ref 909342-001 Rev 11 Page 2-15
Quantium 410 Installation Manual Site Preparation

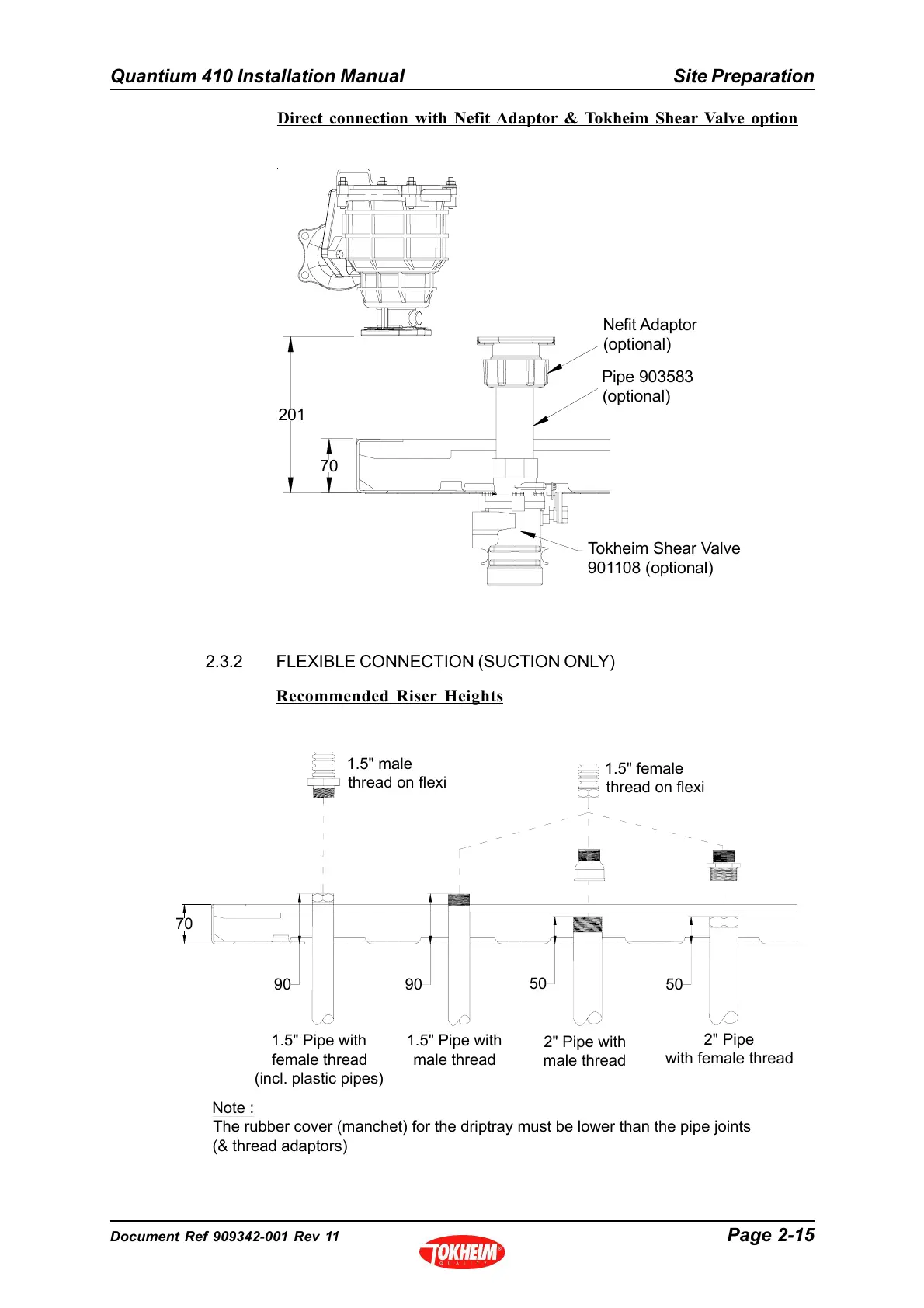

2.3.2 FLEXIBLE CONNECTION (SUCTION ONLY)
Recommended Riser Heights
1.5" male
thread on flexi
70
1.5" Pipe with
female thread
(incl. plastic pipes)
1.5" Pipe with
male thread
2" Pipe with
male thread
2" Pipe
with female thread
1.5" female
thread on flexi
Note :
The rubber cover (manchet) for the driptray must be lower than the pipe joints
(& thread adaptors)
90
50
5090
Direct connection with Nefit Adaptor & Tokheim Shear Valve option
Tokheim Shear Valve
901108 (optional)
70
Nefit Adaptor
(optional)
201
Pipe 903583
(optional)
