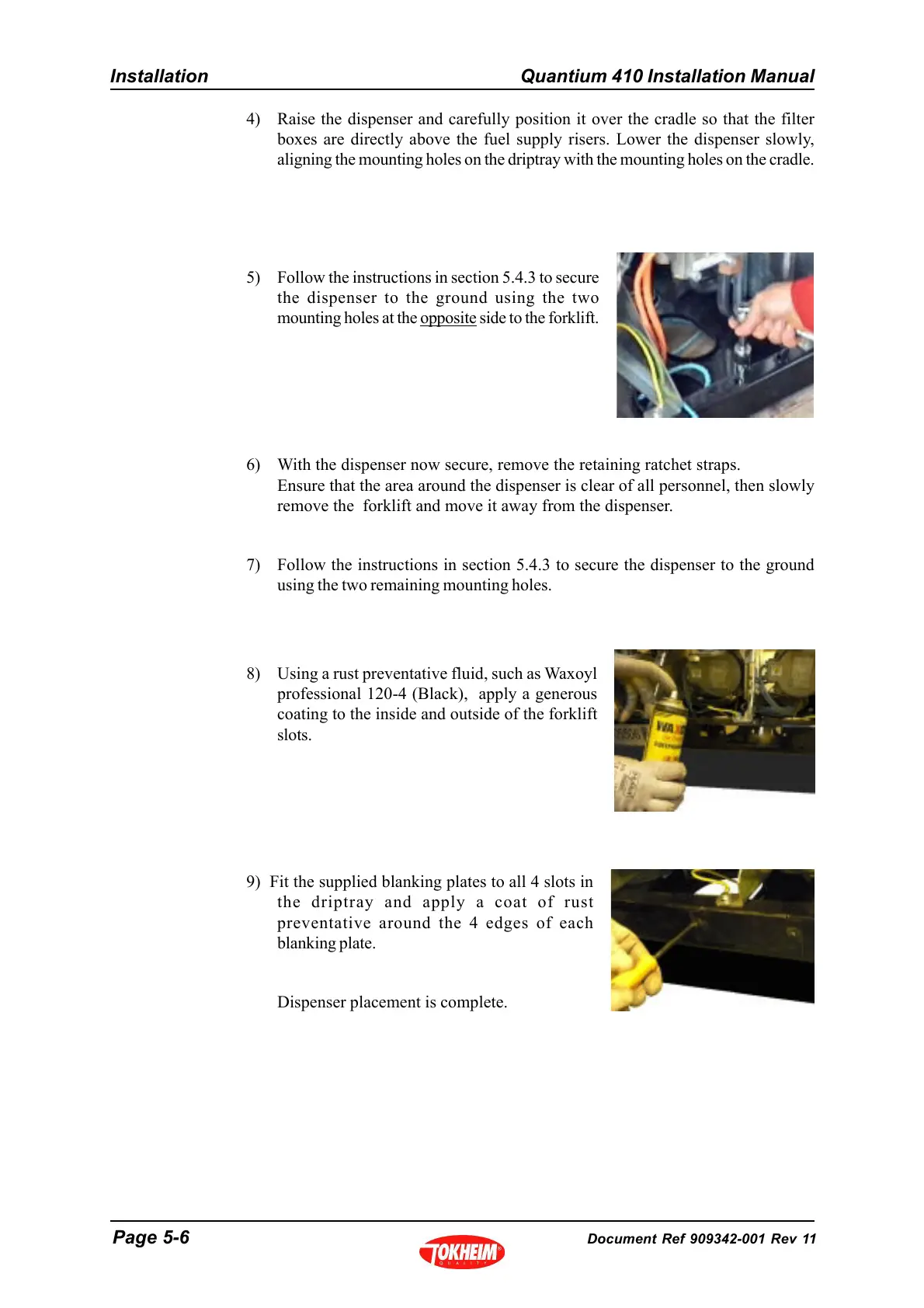

Page 5-6 Document Ref 909342-001 Rev 11
Installation Quantium 410 Installation Manual
4) Raise the dispenser and carefully position it over the cradle so that the filter
boxes are directly above the fuel supply risers. Lower the dispenser slowly,
aligning the mounting holes on the driptray with the mounting holes on the cradle.
5) Follow the instructions in section 5.4.3 to secure
the dispenser to the ground using the two
mounting holes at the
opposite side to the forklift.
6) With the dispenser now secure, remove the retaining ratchet straps.
Ensure that the area around the dispenser is clear of all personnel, then slowly
remove the forklift and move it away from the dispenser.
7) Follow the instructions in section 5.4.3 to secure the dispenser to the ground
using the two remaining mounting holes.
8) Using a rust preventative fluid, such as Waxoyl
professional 120-4 (Black), apply a generous
coating to the inside and outside of the forklift
slots.
9) Fit the supplied blanking plates to all 4 slots in
the driptray and apply a coat of rust
preventative around the 4 edges of each
blanking plate.
Dispenser placement is complete.
