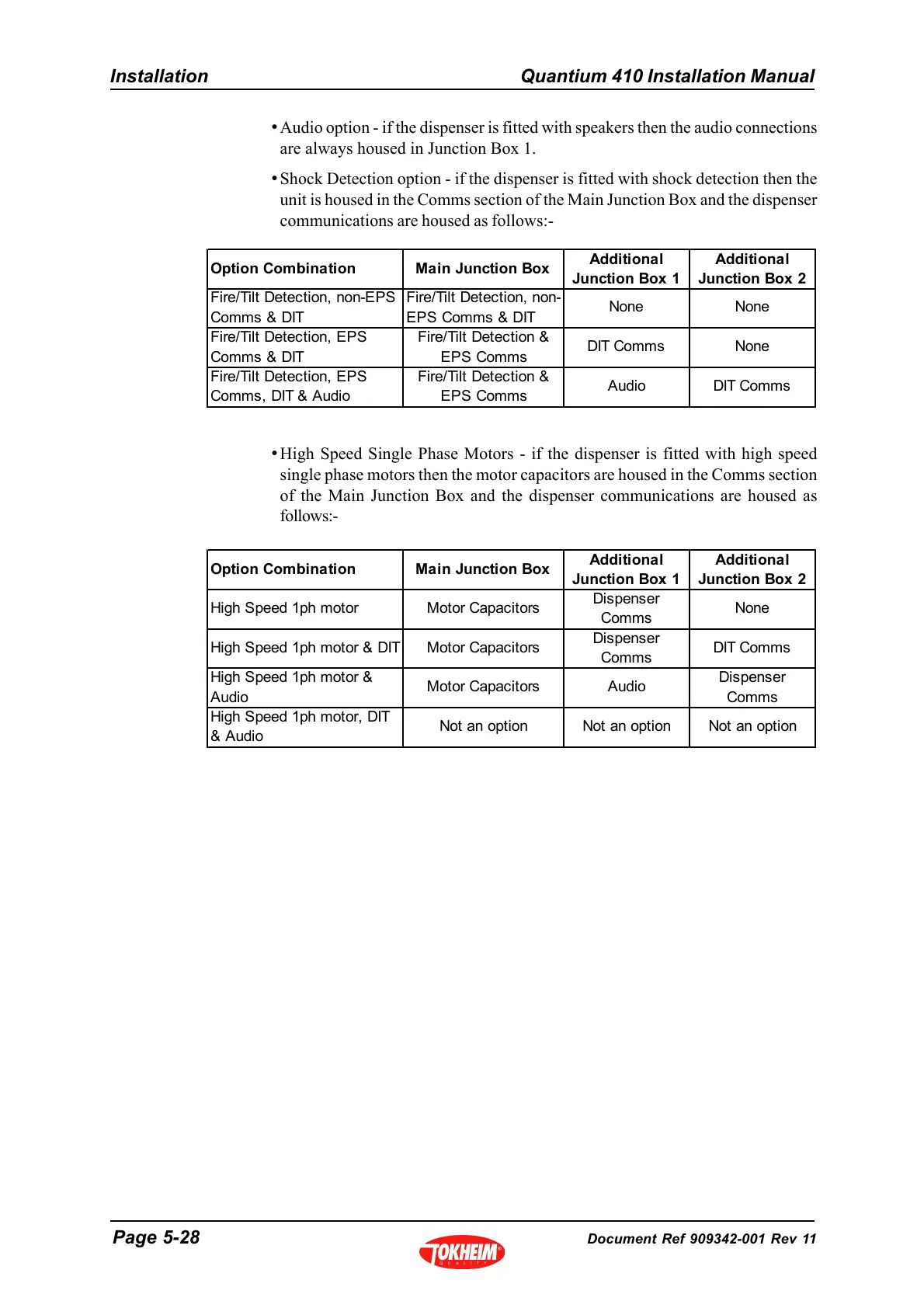

Page 5-28 Document Ref 909342-001 Rev 11
Installation Quantium 410 Installation Manual
• Audio option - if the dispenser is fitted with speakers then the audio connections
are always housed in Junction Box 1.
• Shock Detection option - if the dispenser is fitted with shock detection then the
unit is housed in the Comms section of the Main Junction Box and the dispenser
communications are housed as follows:-
• High Speed Single Phase Motors - if the dispenser is fitted with high speed
single phase motors then the motor capacitors are housed in the Comms section
of the Main Junction Box and the dispenser communications are housed as
follows:-
Option Combination Main Junction Box
Additional
Junction Box 1
Additional
Junction Box 2
Fire/Tilt Detection, non-EPS
Comms & DIT
Fire/Tilt Detection, non-
EPS Comms & DIT
None None
Fire/Tilt Detection, EPS
Comms & DIT
Fire/Tilt Detection &
EPS Comms
DIT Comms None
Fire/Tilt Detection, EPS
Comms, DIT & Audio
Fire/Tilt Detection &
EPS Comms
Audio DIT Comms
Option Combination Main Junction Box
Additional
Junction Box 1
Additional
Junction Box 2
High Speed 1ph motor Motor Capacitors
Dispenser
Comms
None
High Speed 1ph motor & DIT Motor Capacitors
Dispenser
Comms
DIT Comms
High Speed 1ph motor &
Audio
Motor Capacitors Audio
Dispenser
Comms
High Speed 1ph motor, DIT
& Audio
Not an option Not an option Not an option
