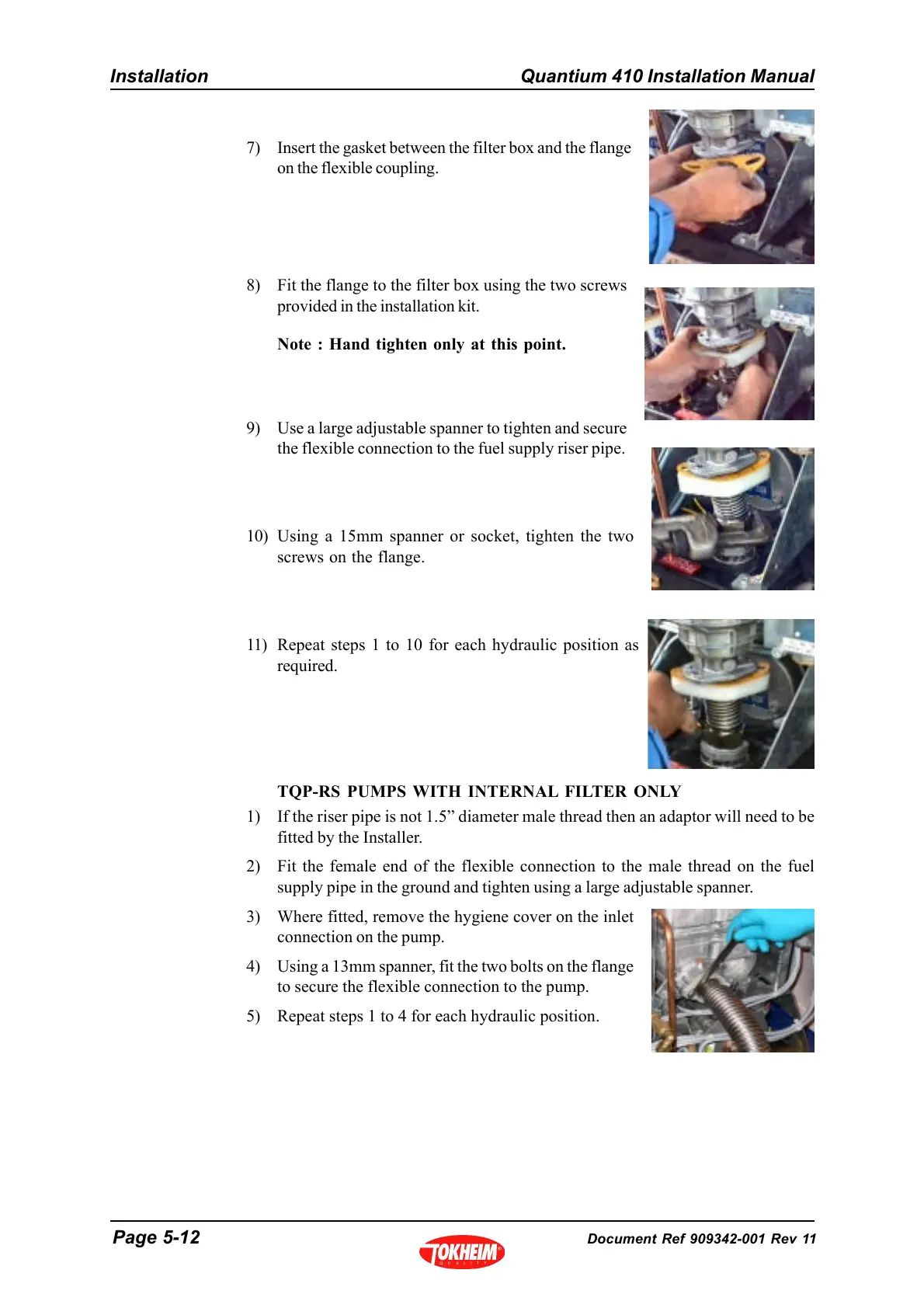

7) Insert the gasket between the filter box and the flange
on the flexible coupling.
8) Fit the flange to the filter box using the two screws
provided in the installation kit.
Note : Hand tighten only at this point.
9) Use a large adjustable spanner to tighten and secure
the flexible connection to the fuel supply riser pipe.
10) Using a 15mm spanner or socket, tighten the two
screws on the flange.
11) Repeat steps 1 to 10 for each hydraulic position as
required.
TQP-RS PUMPS WITH INTERNAL FILTER ONLY
1) If the riser pipe is not 1.5” diameter male thread then an adaptor will need to be
fitted by the Installer.
2) Fit the female end of the flexible connection to the male thread on the fuel
supply pipe in the ground and tighten using a large adjustable spanner.
3) Where fitted, remove the hygiene cover on the inlet
connection on the pump.
4) Using a 13mm spanner, fit the two bolts on the flange
to secure the flexible connection to the pump.
5) Repeat steps 1 to 4 for each hydraulic position.
