Document Ref 909342-001 Rev 11 Page 2-7

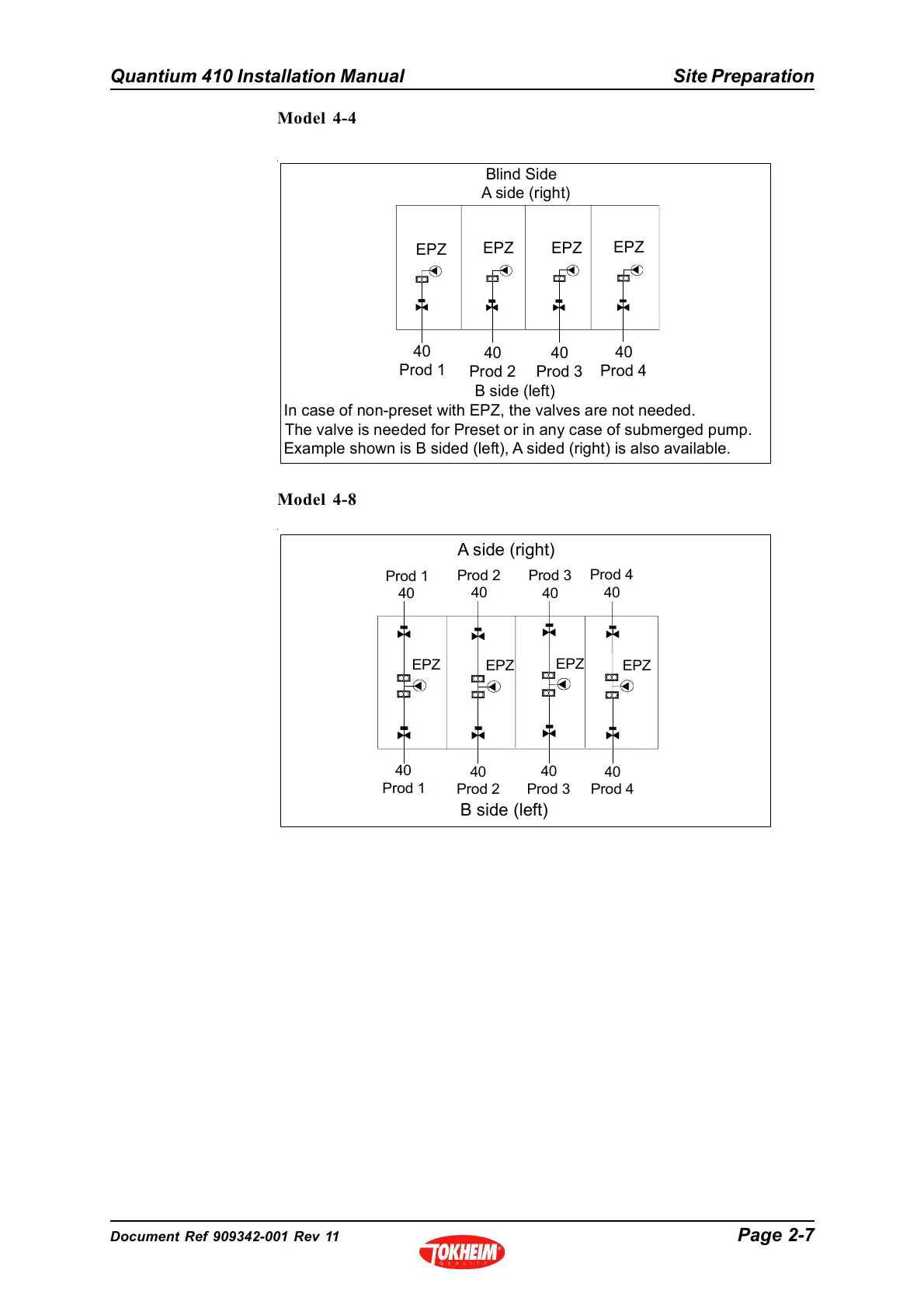

Quantium 410 Installation Manual Site Preparation
Model 4-4
Model 4-8
Blind Side
A side (right)
EPZ
EPZ
B side (left)
40
Prod 1
40
Prod 3
In case of non-preset with EPZ, the valves are not needed.
The valve is needed for Preset or in any case of submerged pump.
Example shown is B sided (left), A sided (right) is also available.
40
Prod 2
EPZ
40
Prod 4
EPZ
B side (left)
40
Prod 1
40
Prod 2
40
Prod 4
EPZ EPZ
EPZ
Prod 1
40
Prod 2
40
Prod 4
40
A side (right)
40
Prod 3
Prod 3
40
EPZ
