Tokheim QUANTIUM 410 - Page 20

Page 2-6 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual
Model 2-4
Model 3-3
Model 3-6
40
Prod 1
Prod 2
40
40
Prod 2
B side (left)
A side (right)
Prod 1
40
EPZ
EPZ
Blind Side
A side (right)
EPZ
EPZ
B side (left)
40
Prod 1
40
Prod 3

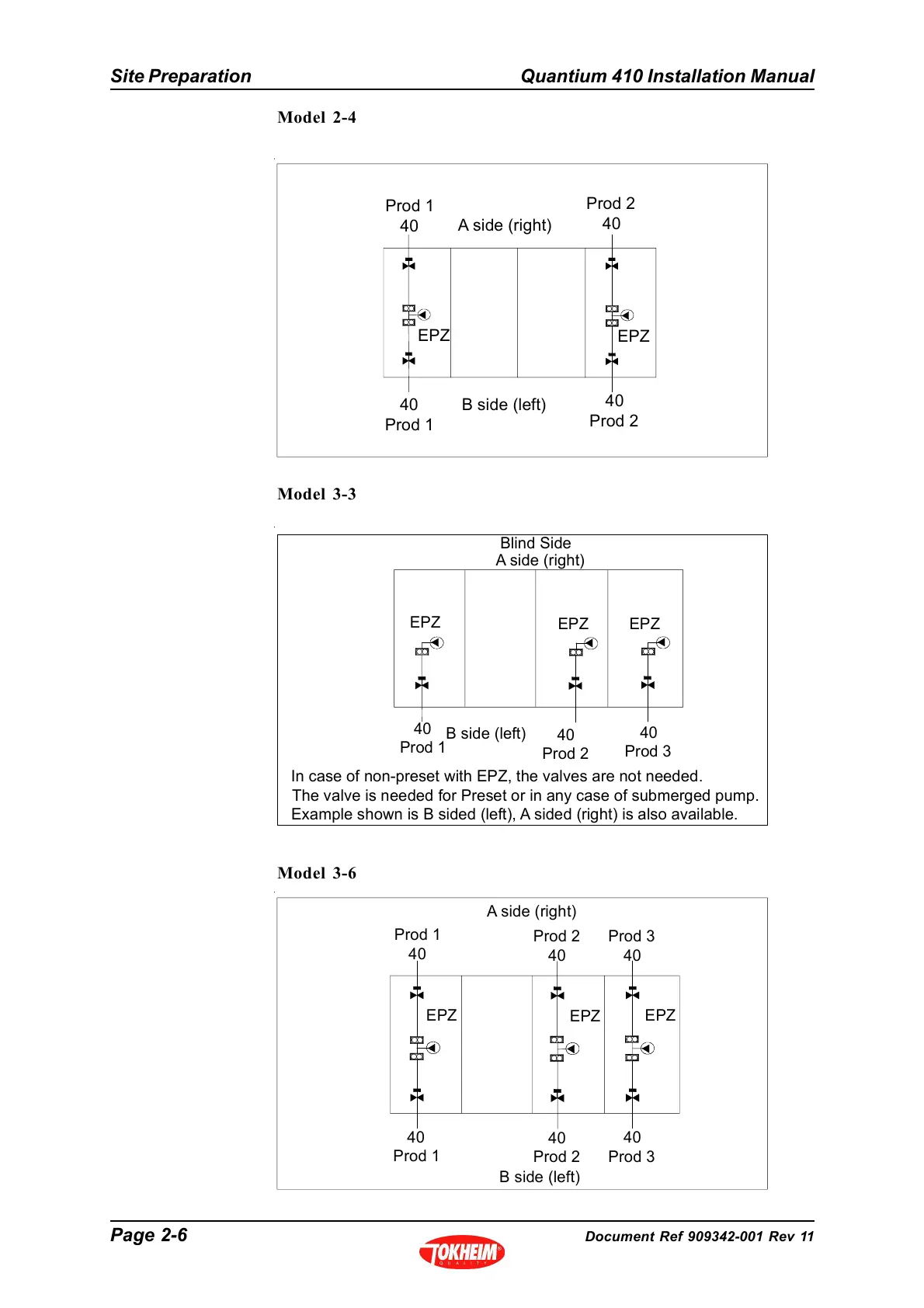

In case of non-preset with EPZ, the valves are not needed.
The valve is needed for Preset or in any case of submerged pump.
Example shown is B sided (left), A sided (right) is also available.
