Page 2-12 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual

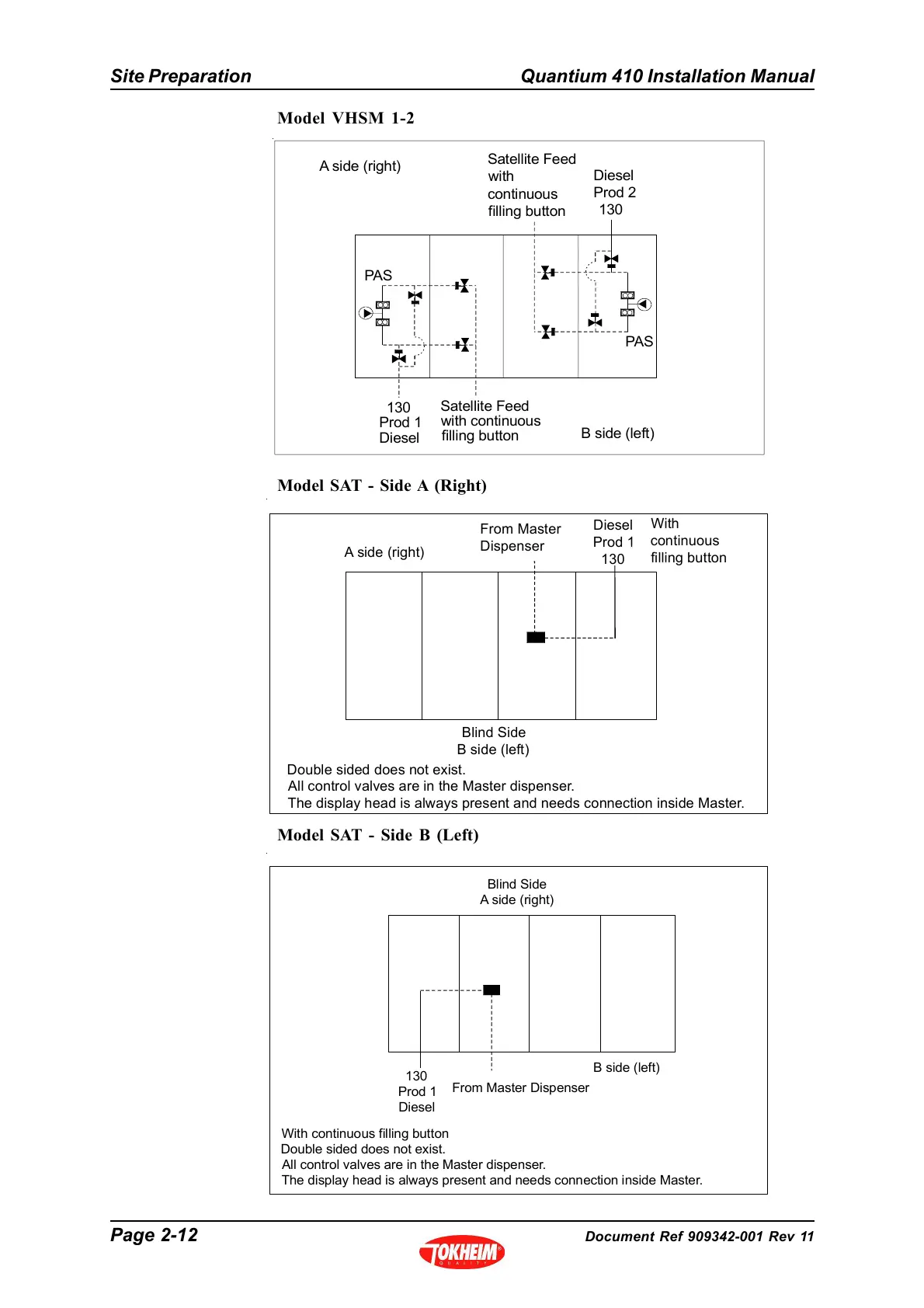

Model SAT - Side B (Left)
Model SAT - Side A (Right)
Diesel
Prod 1
130
With
continuous
filling button
Blind Side
B side (left)
A side (right)
Double sided does not exist.
All control valves are in the Master dispenser.
The display head is always present and needs connection inside Master.
From Master
Dispenser
130
Prod 1
Diesel
With continuous filling button
B side (left)
Blind Side
A side (right)
Double sided does not exist.
All control valves are in the Master dispenser.
The display head is always present and needs connection inside Master.
From Master Dispenser
Model VHSM 1-2
Satellite Feed
with continuous
filling button
B side (left)
A side (right)
Diesel
Prod 1
130
PAS
Satellite Feed
with
continuous
filling button
Diesel
Prod 2
130
PAS
