Page 2-22 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual

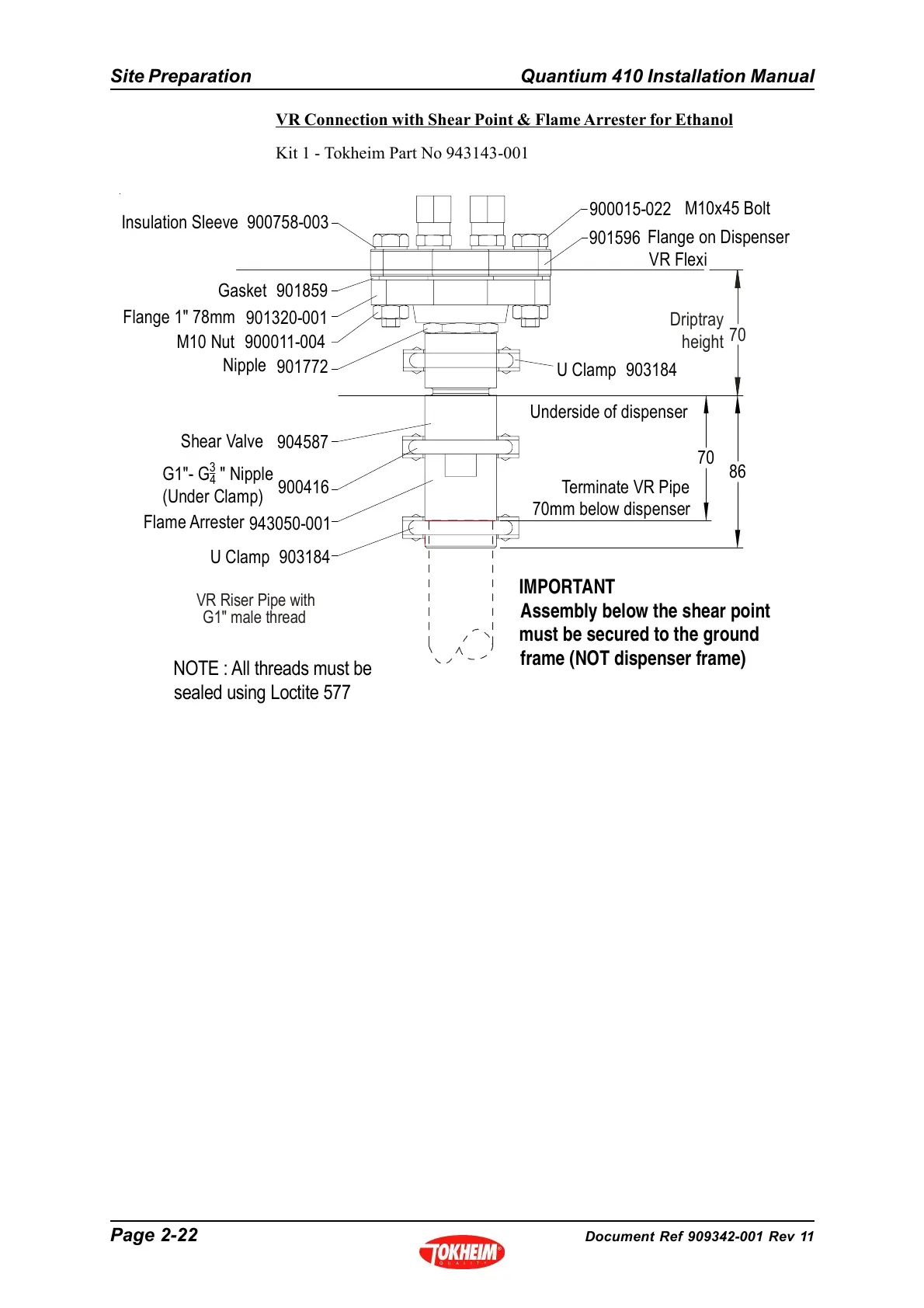

VR Connection with Shear Point & Flame Arrester for Ethanol
Kit 1 - Tokheim Part No 943143-001
VR Riser Pipe with
male threadG1"
904587
900015-022
900758-003
901596
901859
901320-001
900011-004
901772
900416
943050-001
903184
903184
Insulation Sleeve
Gasket
M10 Nut
Shear Valve
U Clamp
U Clamp
Flame Arrester
G1"- G
3
4
" Nipple
(Under Clamp)
Nipple
Flange 1" 78mm
Flan
g
e on Dispenser
VR Flexi
M10x45 Bolt
IMPORTANT
Assembly below the shear point
must be secured to the ground
frame (NOT dispenser frame)
Underside of dispenser
70
Driptray
height
86
70
Terminate VR Pipe
70mm below dispenser
NOTE : All threads must be
sealed using Loctite 577
