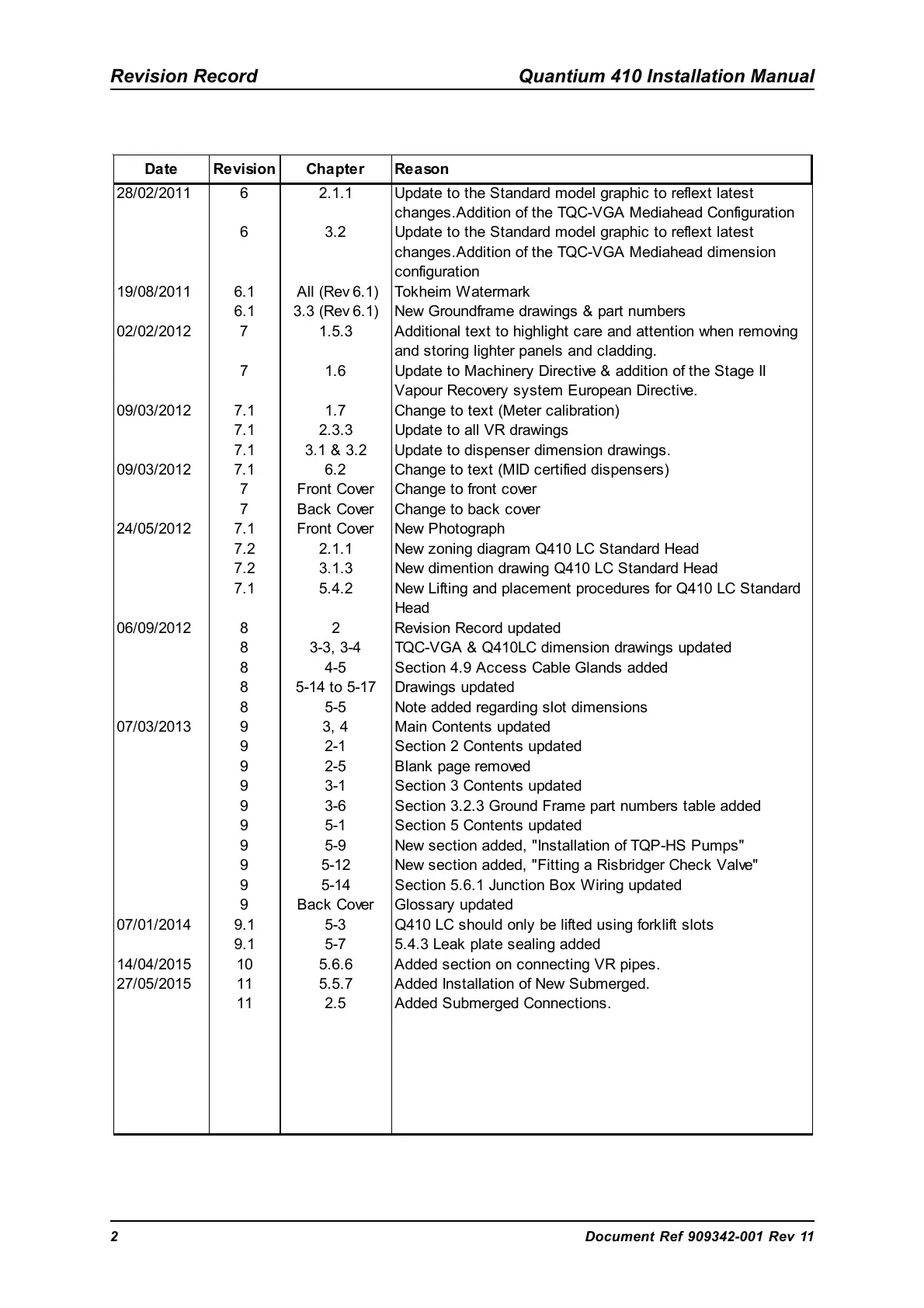

Tokheim QUANTIUM 410 - Page 4

2 Document Ref 909342-001 Rev 11
Revision Record Quantium 410 Installation Manual
Date Revision Chapter Reason
28/02/2011 6 2.1.1 Update to the Standard model graphic to reflext latest
changes.Addition of the TQC-VGA Mediahead Configuration
6 3.2 Update to the Standard model graphic to reflext latest
changes.Addition of the TQC-VGA Mediahead dimension
configuration
19/08/2011 6.1 All (Rev 6.1) Tokheim Watermark
6.1 3.3 (Rev 6.1) New Groundframe drawings & part numbers
02/02/2012 7 1.5.3 Additional text to highlight care and attention when removing
and storing lighter panels and cladding.
7 1.6 Update to Machinery Directive & addition of the Stage II
Vapour Recovery system European Directive.
09/03/2012 7.1 1.7 Change to text (Meter calibration)
7.1 2.3.3 Update to all VR drawings
7.1 3.1 & 3.2 Update to dispenser dimension drawings.
09/03/2012 7.1 6.2 Change to text (MID certified dispensers)
7 Front Cover Change to front cover
7 Back Cover Change to back cover
24/05/2012 7.1 Front Cover New Photograph
7.2 2.1.1 New zoning diagram Q410 LC Standard Head
7.2 3.1.3 New dimention drawing Q410 LC Standard Head
7.1 5.4.2 New Lifting and placement procedures for Q410 LC Standard
Head
06/09/2012 8 2 Revision Record updated
8 3-3, 3-4 TQC-VGA & Q410LC dimension drawings updated
8 4-5 Section 4.9 Access Cable Glands added
8 5-14 to 5-17 Drawings updated
8 5-5 Note added regarding slot dimensions
07/03/2013 9 3, 4 Main Contents updated
9 2-1 Section 2 Contents updated
9 2-5 Blank page removed
9 3-1 Section 3 Contents updated
9 3-6 Section 3.2.3 Ground Frame part numbers table added
9 5-1 Section 5 Contents updated
9 5-9 New section added, "Installation of TQP-HS Pumps"
9 5-12 New section added, "Fitting a Risbridger Check Valve"
9 5-14 Section 5.6.1 Junction Box Wiring updated
9 Back Cover Glossary updated
07/01/2014 9.1 5-3 Q410 LC should only be lifted using forklift slots
9.1 5-7 5.4.3 Leak plate sealing added
14/04/2015 10 5.6.6 Added section on connecting VR pipes.
27/05/2015 11 5.5.7 Added Installation of New Submerged.
11 2.5 Added Submerged Connections.
