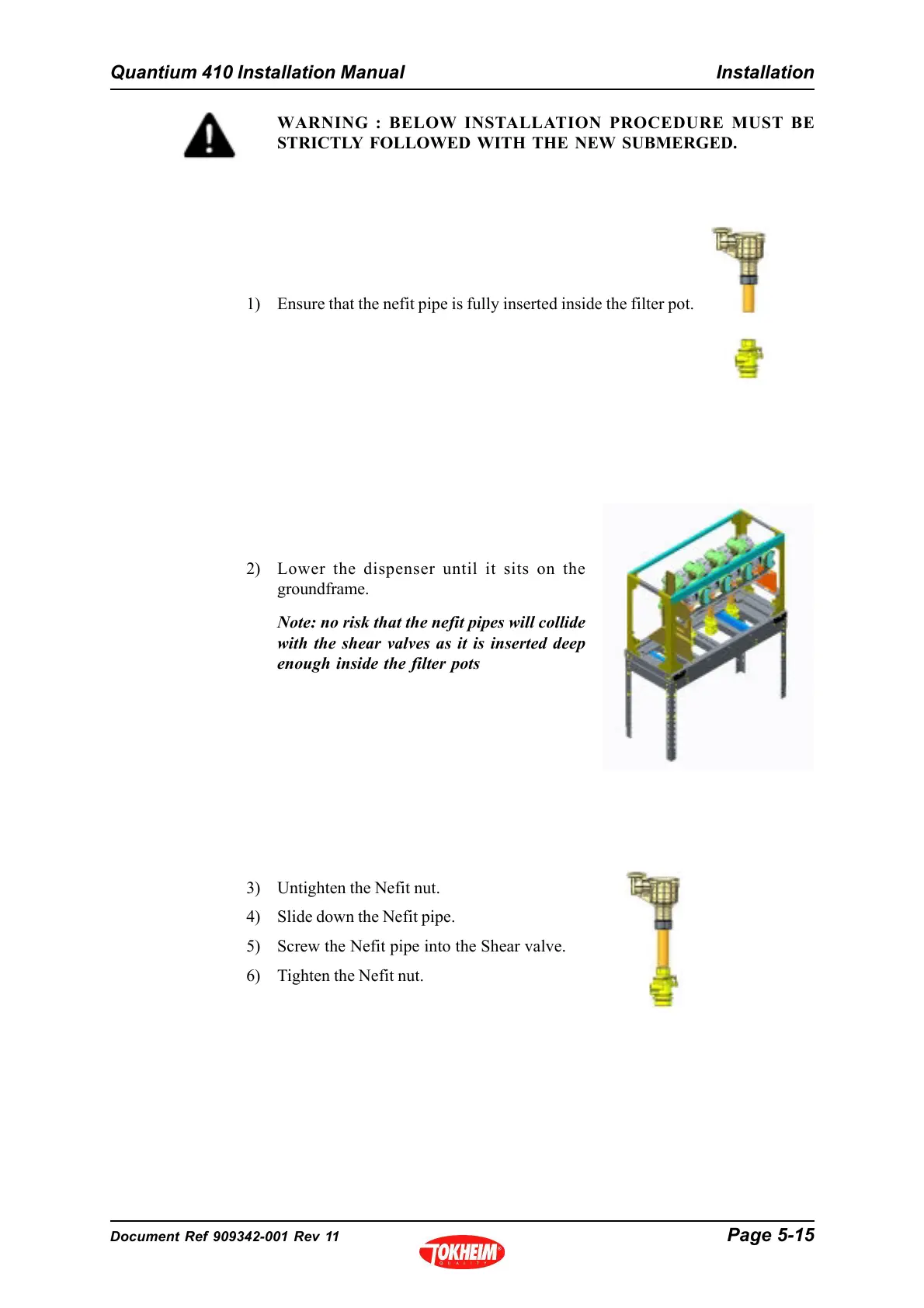

Document Ref 909342-001 Rev 11 Page 5-15
Quantium 410 Installation Manual Installation
1) Ensure that the nefit pipe is fully inserted inside the filter pot.
2) Lower the dispenser until it sits on the
groundframe.
Note: no risk that the nefit pipes will collide
with the shear valves as it is inserted deep
enough inside the filter pots
3) Untighten the Nefit nut.
4) Slide down the Nefit pipe.
5) Screw the Nefit pipe into the Shear valve.
6) Tighten the Nefit nut.
WARNING : BELOW INSTALLATION PROCEDURE MUST BE
STRICTLY FOLLOWED WITH THE NEW SUBMERGED.
