“Return” button (3). Touch the “Return” button to cancel the deletion. When
new measurement data is captured, however, the deleted data cannot be
restored by pressing the “Return” button.
c) Caliper function
The caliper function is for temporary reference and cannot store the callipered
data. The caliper screen cannot be opened while a bias value is selected.
(Fig. 2)

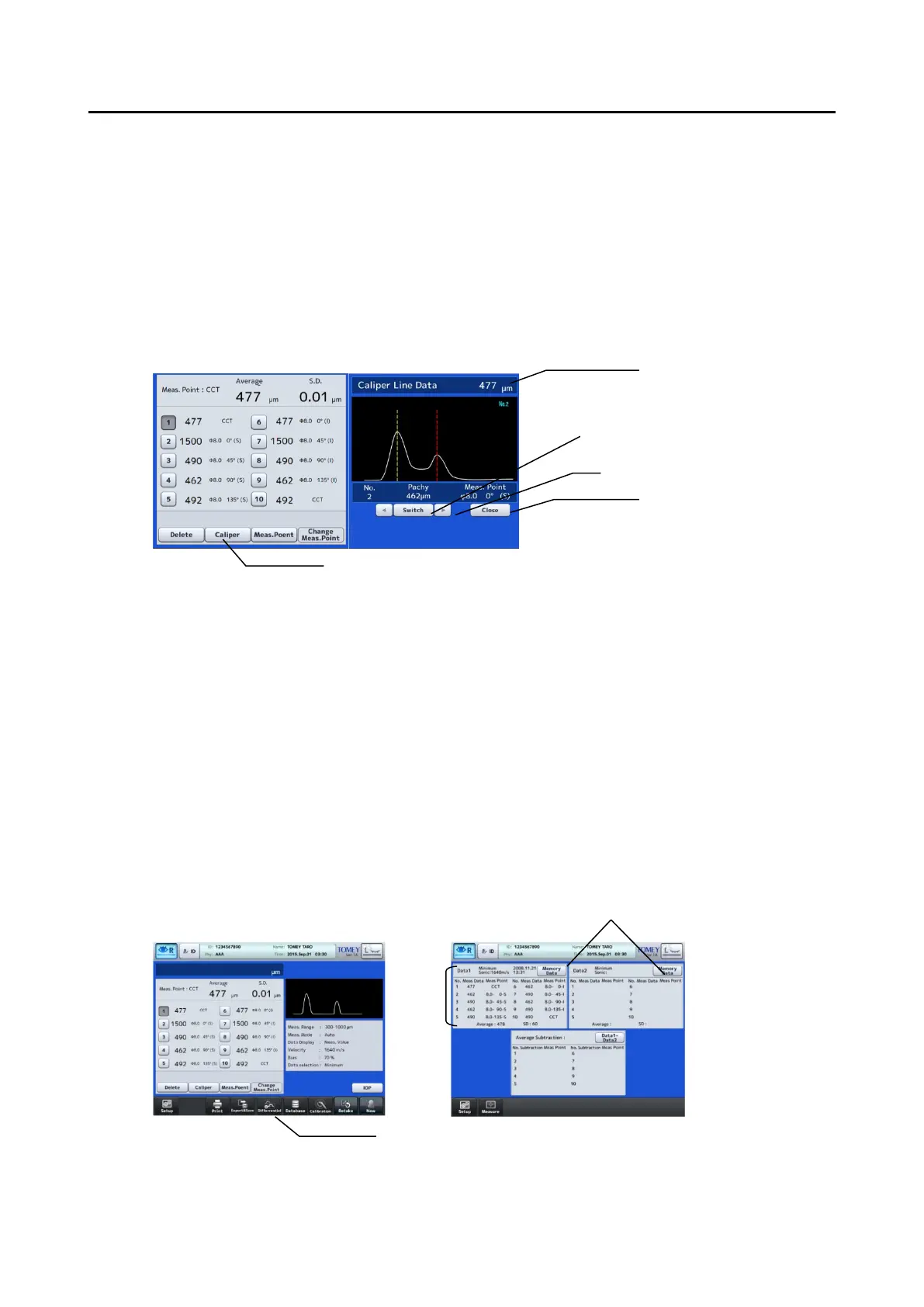

1) Touch the "Caliper" button (1) to display the caliper screen (Fig. 2).
2) Touch the “Switch” button (2) to select a caliper line to be adjusted.
3) Touch the “active caliper line movement” button (3) to change the position of
the active caliper line. In conjunction with the movement of the caliper line,
the distance between the caliper lines (4) is displayed.
4) Touch the “Close” button (5) to close the caliper screen (Fig. 2) and return to
the previous screen.
d) Difference display function
This function displays the difference value between the 2 selected measurement
data.
(Fig. 3)
1) Touch the “Differential” button (1) to open the difference display screen (Fig.
3). When a measurement has already been completed at this point, the
