16
COMPONENTS

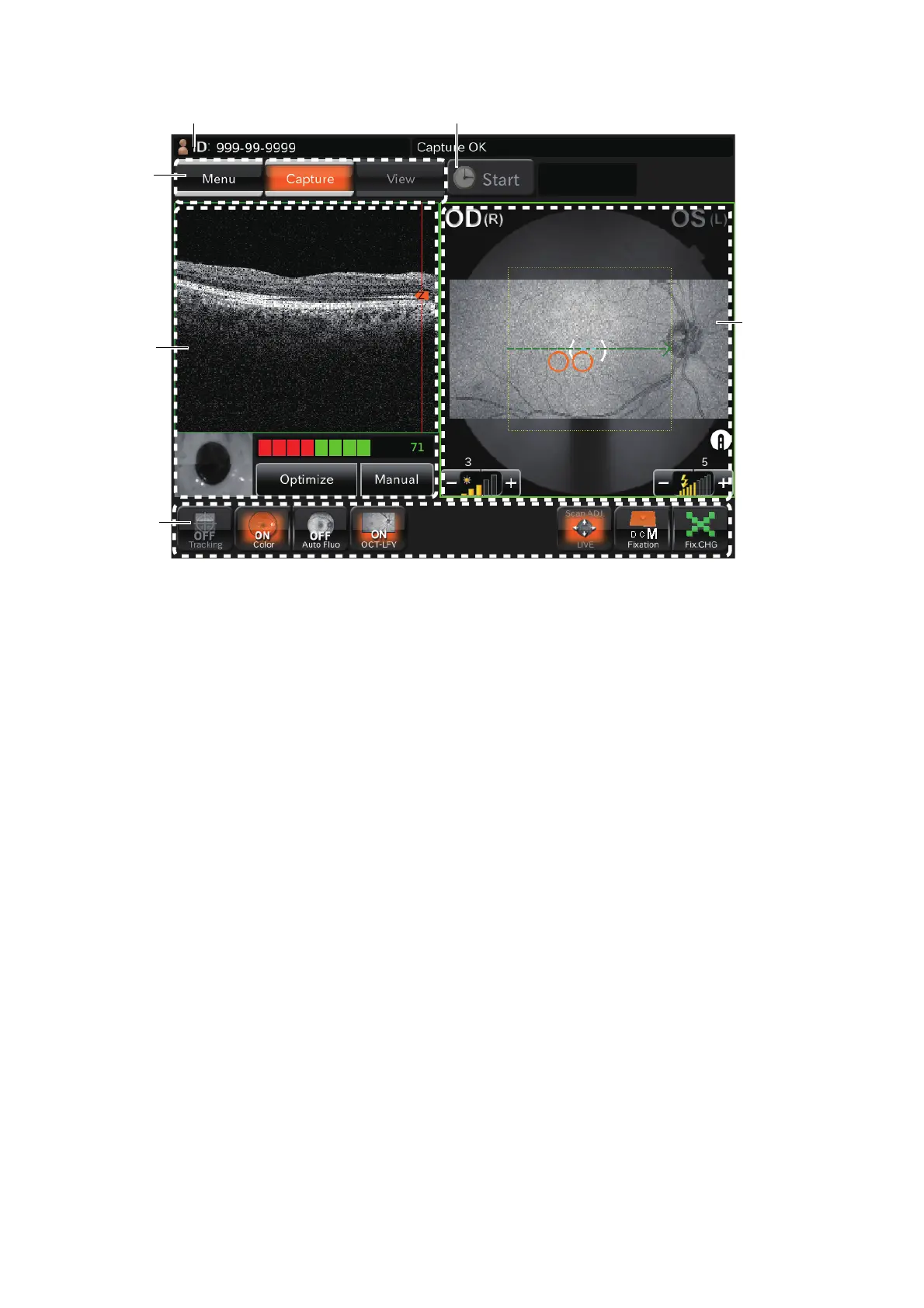

Photography screen (OCT photography)
Patients ID display area : Displays the patients ID.
Timer button
(Only in DRI OCT-1 Model
Triton plus)
: Used in FA photography. (Refer to page 61.)
Area 1 : Displays the operation mode buttons and changes the modes.
Area 2 : Changes the internal fixation target and performs other operations.
Tomogram live image area : Displays the tomogram live image. You can perform a variety of oper-
ations on the live image. (Refer to page 22.)
Fundus/anterior segment live
image area
: This area displays the live image of fundus or anterior segment and
the graphic image of the scan pattern, which is set on the selected
capture icon, with an interrupted line. The right/left eye, flash level
and illumination level are displayed around the image. You can adjust
the flash level and illumination level with the touch display. (Refer to
page 20.)
In the scan position adjustment mode, the scan position adjustment
range and fine adjustment buttons are displayed. So you can adjust
the scan position with the touch display. (Refer to page 39.)
Tomogram
live image
area
Area 1
Area 2
Patient ID display area Timer button
Fundus/anterior
segment live
image area
To Next Page
