Topcon ES-65 - Point to Line Measurement; To Change to the Point to Line Measurement

7-18
7 DATA COLLECTION

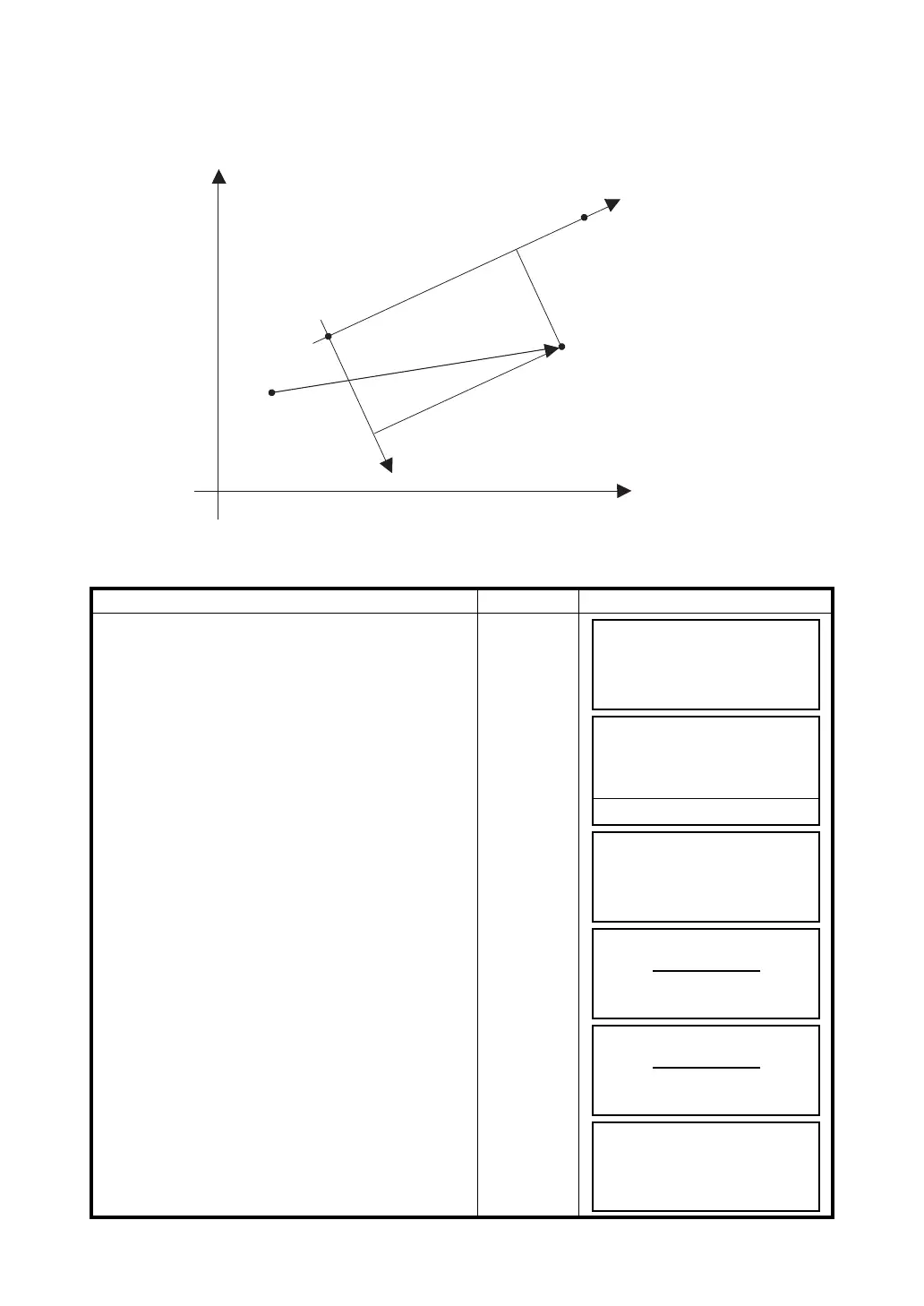

7.5 Point to Line Measurement
In this mode, a offsetting point from a certain determined line can be measured.
7.5.1 To change to the point to line measurement
Operating procedure Operation Display
1 Press the {F3} (MEAS) key and press the {F4}key
to get to the next soft key page.
{F3}
{F4}
2 Press the {F2} (PTL) key.
{F2}
3 Press the {F1} (ON) key and press the {F4}
(ENTER) key.
The input screen of a reference point 1 will appear.
{F4}
4 Enter the point 1 data and press the {F4} (Enter).
The input screen of a reference point 2 will appear.
Input data
{F4}
5 Enter the point 2 data and press the {F4} (Enter).
The screen will return to data collect
measurement.
If the PTL measurement mode is available, ‘PTL’
will appear next to PT#.
Input data
{F4}
OCC.PT
Offset
Ref.P1
PT#
(PT#PTL)
Ref.P2
ΔO
ΔL
Line
E
N
PT# → PT-01
PCODE :TOPCON
R.HT : 1.500 m
INPUT SRCH MEAS ALL
PT# → PT-01
PCODE :TOPCON
R.HT : 1.500 m
VH *SD NEZ P1
↓
OFSET PTL NP/P P2 ↓
POINT TO LINE MODE
[F1:ON ]
F2:OFF
ENTER
REF. POINT 1
PT#:
INPUT LIST --- ENTER
REF. POINT 2
PT#:
INPUT LIST --- ENTER
PT#PTL → PT-01
PCODE :TOPCON
R.HT : 1.500 m
INPUT SRCH MEAS ALL
