3 ANGLE MEASUREMENT
3.7 Compasses (vertical angle)

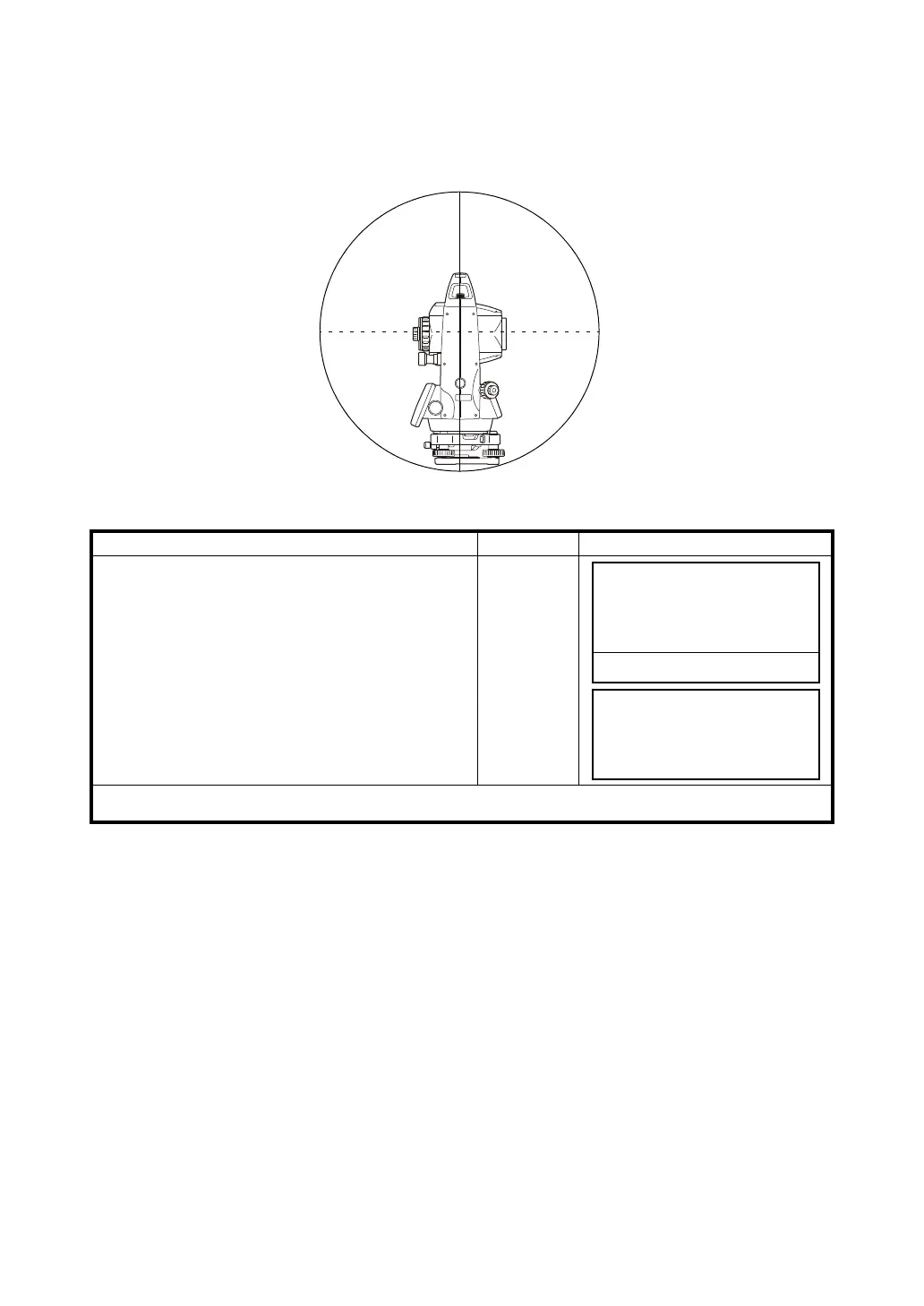

Vertical angle is displayed as shown below.
Operating procedure Operation Display
1 Press the {F4} ( ↓ ) key twice to get the function
on page 3.
{F4}
twice
2 Press the {F3} (CMPS) key. *1)
{F3}
*1) Every time pressing the {F3} (CMPS) key, the display mode switches.
+90°
-90°
0°
0°
V : 98°10'20"
HR: 170°30'20"
0SET HOLD HSET P1
↓
H-BZ R/L CMPS P3 ↓
V : - 8°10'20"
HR: 170°30'20"
H-BZ R/L CMPS P3
↓
