Topcon GR-3 - Page 127

Downloading Files to a Computer
P/N 7010-0736
5-3

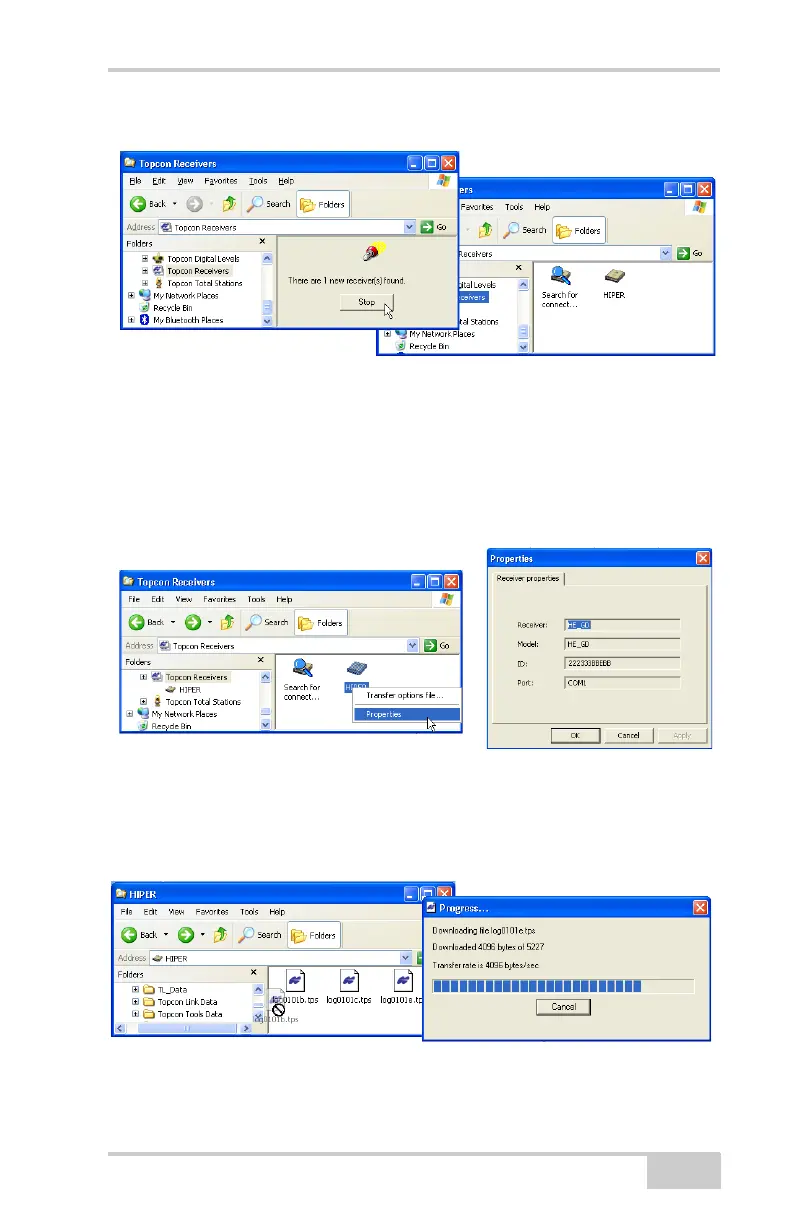

Figure 5-2. Break Of Searching Receivers
4. To update information about the receivers connected to the
computer port, click Search for connected receivers.
5. To view information about the receiver (Figure 5-3), right-click
the receiver, and select the Properties option.
6. To view the raw file, click on the receiver.
Figure 5-3. Receiver Properties
7. To import the file(s) from the receiver to a folder, select the
file(s), and copy to the folder using drag-and-drop method
(Figure 5-4).
Figure 5-4. Start of File Import from the TPS Receiver/Import in Progress
