Powering the Receiver
P/N 7010-0736
2-17
2. Insert four AA batteries as shown on the inside of the shell (and
in Figure 2-16).
• The batteries on the left lay with the positive end towards the
bottom of the shell.
• The batteries on the right lay with the positive end towards
the top of the shell.
3. Replace the back cover of the shell.

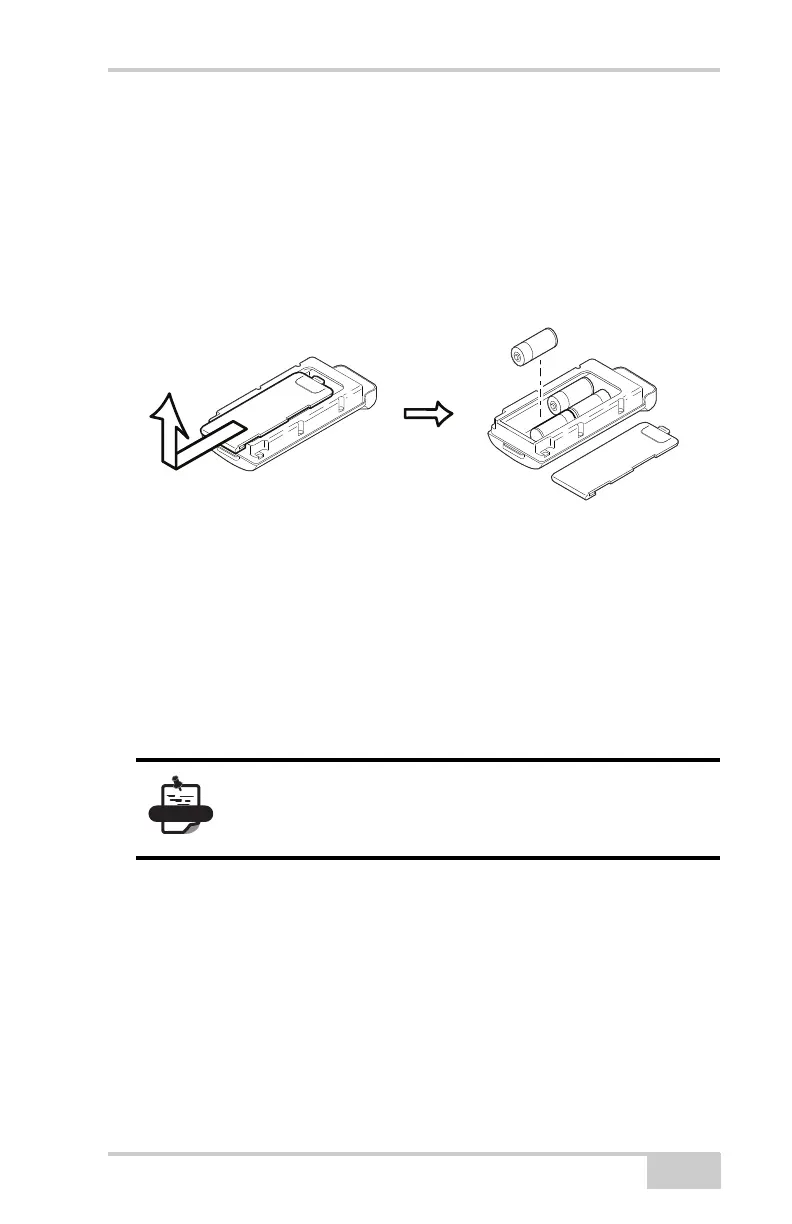

Figure 2-16. Remove Cover and Insert AA Batteries
4. Insert the AA battery shell into the battery pocket of the receiver
as shown in “To attach the batteries (Figure 2-14):” on page 2-15.
Using an Auxiliary Power Source
In addition to the attached batteries, the receiver connects to external
batteries. External batteries allow for continuous use of the receiver in
case the internal batteries become discharged.
To connect the receiver to the charging cradle (Figure 2-17):
The charging cradle with extra batteries hooks onto a tripod or belt for
a convenient power supply for the receiver. The part number for the
receiver-to-charger cradle cable is 14-008072-01 or 14-008072-02.
1. Connect one end of the cradle-to-receiver cable to the charging
cradle.
The batteries in the charging cradle do not charge
the internal/detachable batteries.
The charging cradle is used to power the receiver.
- +
- +
+ -
+ -
