Receiver and File Maintenance
GR-3 Operator’s Manual
5-6
Downloading Files via PC-CDU
Perform the following steps to download files via PC-CDU:
1. Connect your receiver and computer. See “Connecting the
Receiver and a Computer” on page 2-20 for this procedure.
2. Open PC-CDU. On the Connection Parameters dialog box,
enable RTS/CTS handshaking and click Connect (Figure 5-9).

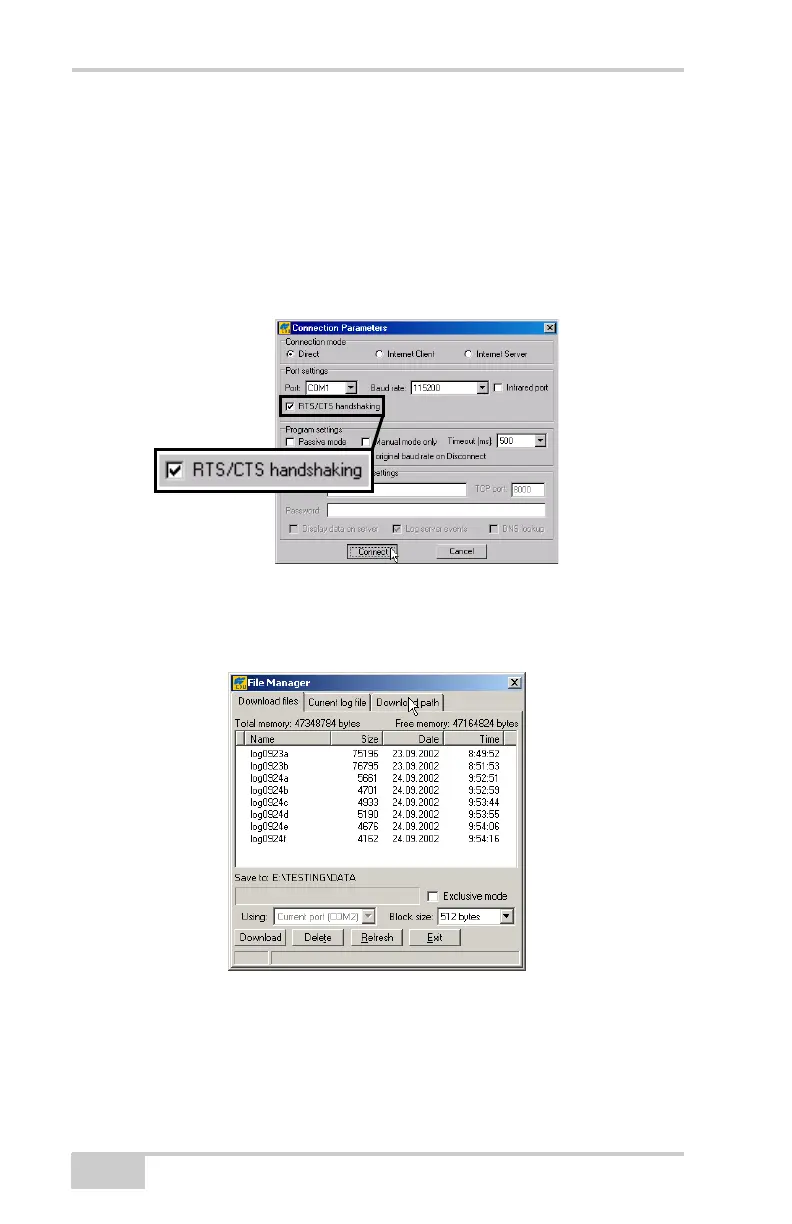

Figure 5-9. Connection Parameters – RTS/CTS Handshaking
3. Click FileFile Manager, then click the Download path tab on
the File Manager dialog box (Figure 5-10).
Figure 5-10. Find Files to Download
4. Navigate to or create (using the Create button) the folder in
which to download and store files.
