COMPONENT NAMES AND FUNCTIONS

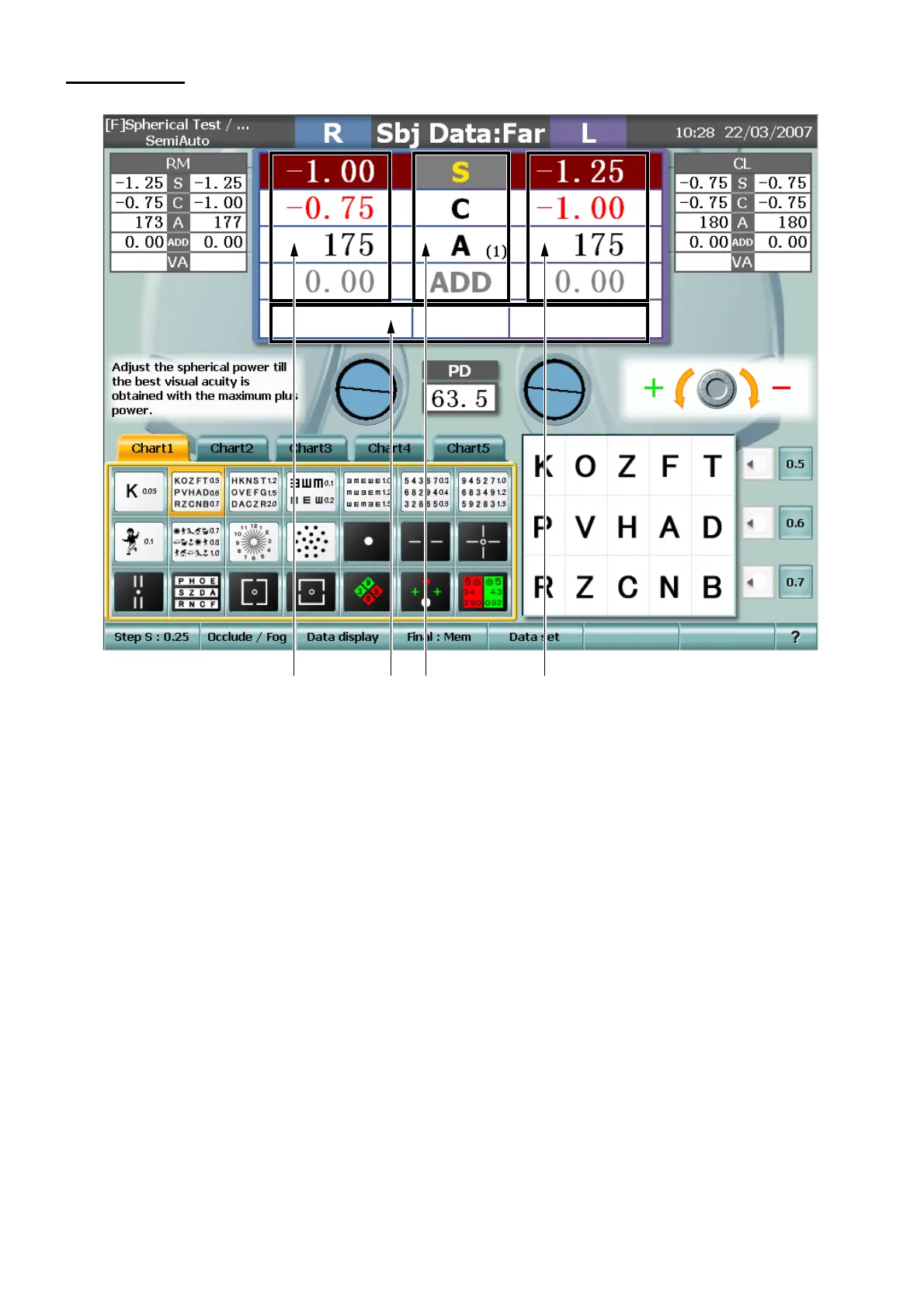

MAIN DATA
(1) Right eye data
Displays the lens data, which are set for the right eye of the CV-5000.
When each value is highlighted, it can be changed by turning the dial.
The colors for the values of the spherical, astigmatic and addition refractive powers are changed
according to the value or occluding status.
(2) Left eye data
Displays the data in the same way as the right eye.
(3) Data item
The data items are displayed between the right and left eye data.
The changing step quantity of the dial is displayed on [Function button].
The step quantity of axis is displayed here.
In the far-point test, the addition refractive power item is shadowed, and in the near point test, the
spherical power item is shadowed.
(4) Visual acuity/prism
Displays the set visual acuity and prism data.
If prism is shown by the base direction notation (XY), the refractive power of horizontal/vertical prism
is displayed.
If prism is shown by the polar coordinate notation (r/θ), the refractive power and angle of prism are
displayed.
(1) (3)(4) (2)
