Grading Applications
Motorgrader System Five Operator’s Manual
5-34

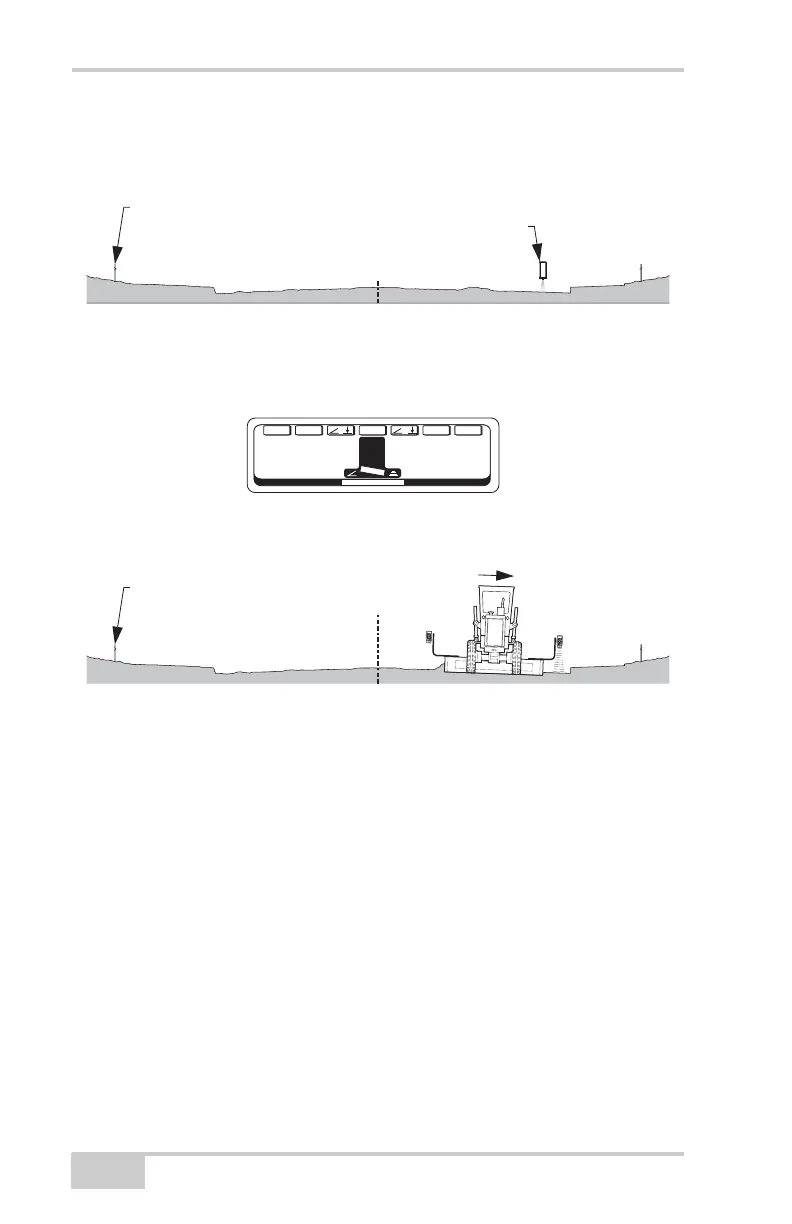

Once the curb grade has been cut and verified, mark the edge of street
with spray paint to make it visible for the operator.
Figure 5-50.
Use the curb grade as a reference to cut the street grade. Dial in
thedesired grade and slope.
Figure 5-51.
MARK EDGE
OF STREET WITH
SPRAY CAN
LEFT SONIC
STRINGLINE
C
L
LEFT SONIC
STRINGLINE
2.0%
SLOPE
VIEW FROM BEHIND GRADER
0.20
F
T
CONTROL MODE
G A INS E T/ + / — /M E NU
-
2.0%
T R IM
C
L
