Installation
TS-i3 Sensors
10
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
Tilt Bucket Sensor
If using tilt bucket, an additional sensor may be mounted to the bucket (Figure 14). Tilt bucket sensor
mounting differs from all other sensors. Determine the location and orientation of the sensor with the
bucket sitting flat on the ground.
Figure 14: Tilt Bucket Sensor Mounting
Tilt Rotator
The following brands of supported Tilting/Rotating attachments include;
• Rototilt
®
• Engcon
®
• Steelwrist
®
Each manufacturer has specific installation documentation which is required for setup and calibration.

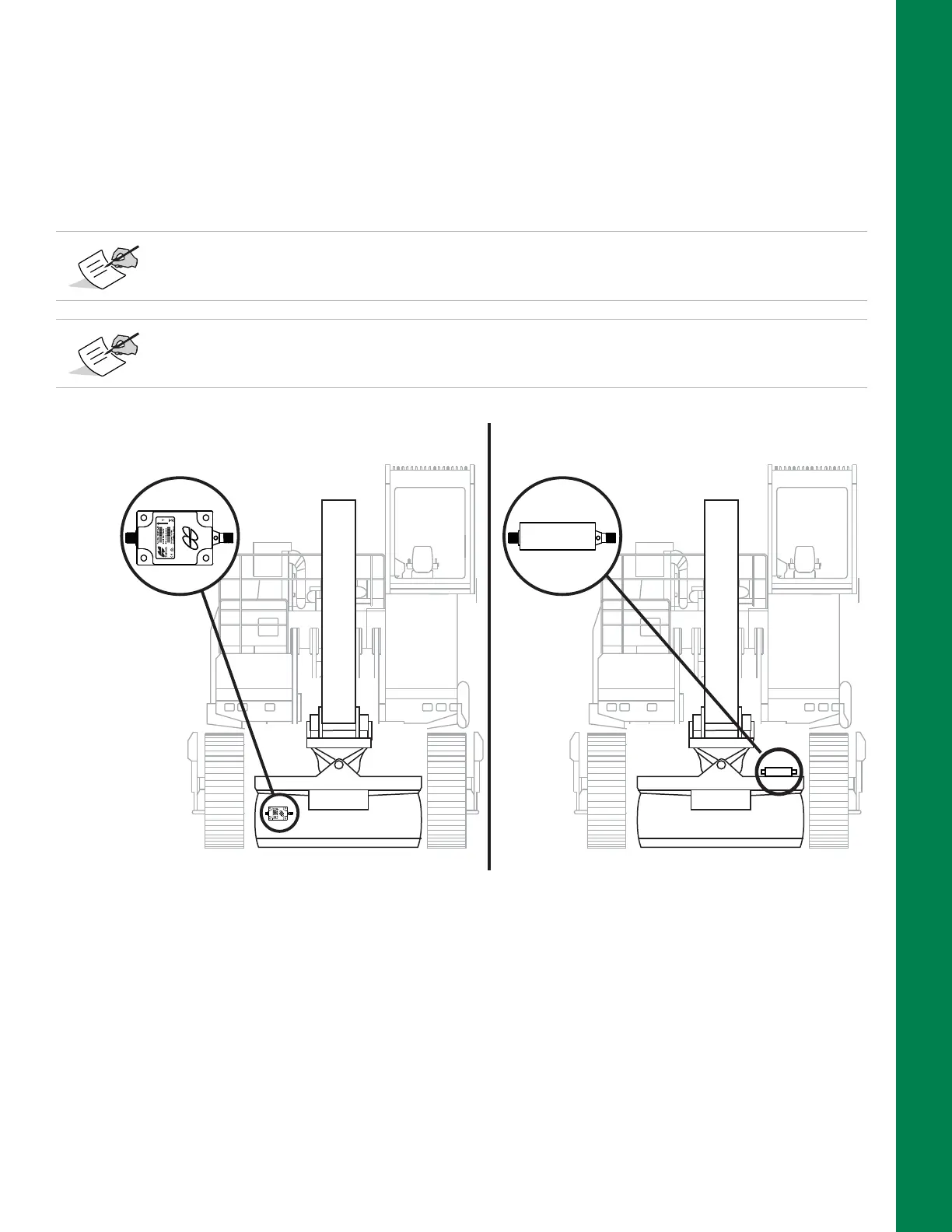

If using a single-axis TS-i3 sensor, mount the sensor vertically, with the label front/arrow
right, or label back/arrow right from the cab perspective.
If using a dual-axis TS-i3d sensor, mount the sensor with a flat orientation, on a the top of
the attachment with the label up. The arrow may point left, right, forward, or back.
Single-axis TS-i3 Sensor Orientation Dual-axis TS-i3d Sensor Orientation
