Setup Verification
LS-B10W Test
45
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
3. Curl only the boom in and out at various positions, and measure the distance from the string line
to the bucket teeth with a measuring tape (
Figure 54).

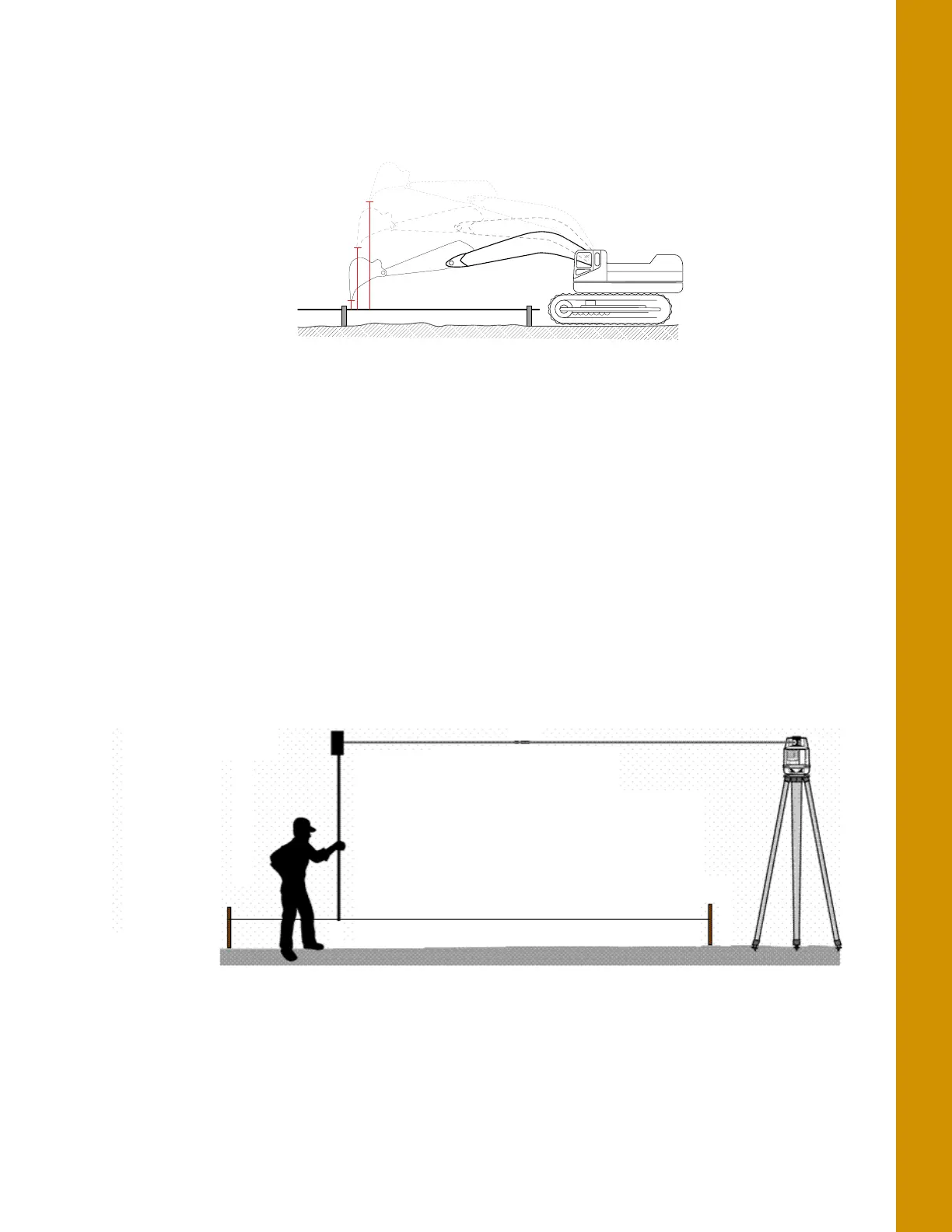

Figure 54: String Line Verification - Boom
4. Compare the measuring tape values with those shown in 3D-MC.
5. If the measurements compared against 3D-MC match, repeat steps 1-4 and reverify.
6. If the values still match, check the secondary boom sensor (if used), and then the body sensor.
7. If the measurements compared against 3D-MC do not match, each sensor must be evaluated for
machine measurement or calibration errors.
LS-B10W Test
1. Set the Rotating Laser to transmit a flat plane beam.
2. Set flat string line, and measure the distance from the laser plane to the string line using a grade
rod with laser receiver.
Figure 55: Laser Plane to String Line Measurement
Distance from laser plane to string line:_________________________
