Topcon X-52 - Stick Sensor

Installation
TS-i3 Sensors
11
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
Stick Sensor
Locate a convenient surface to mount the sensor. Mounting the sensor close to the top of the stick
will help prevent damage during digging.
The mounting location shall be on the left or right side of the stick (from the cab point of view).

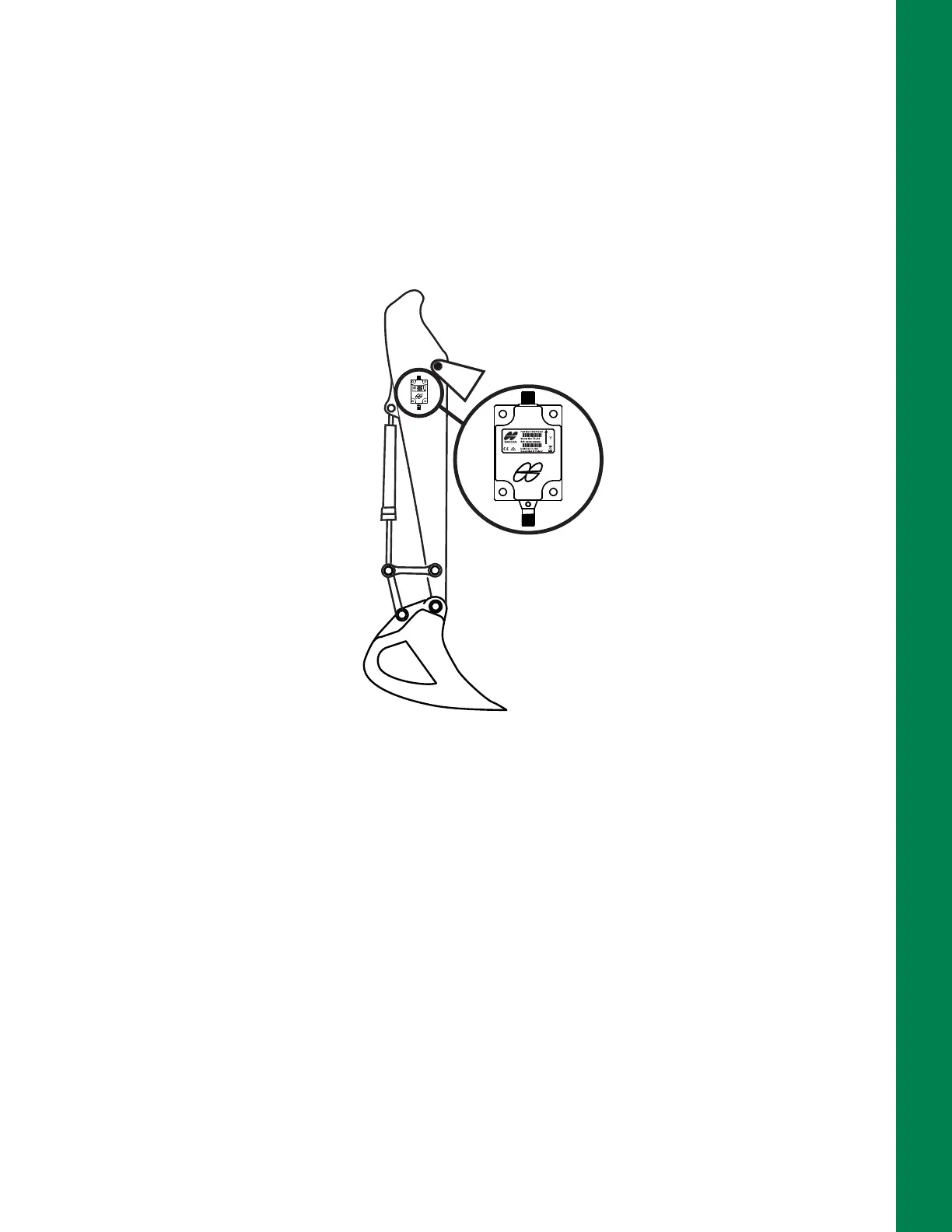

Figure 15: TS-i3 Stick Sensor Mounting
Correct Side
Location
