Topcon X-52 - On Hitch;Coupling

Calibration
Excavator Hitch
33
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
On Hitch/Coupling
1. When performing the on hitch/coupling sensor calibration, position the bucket at -90° degrees.

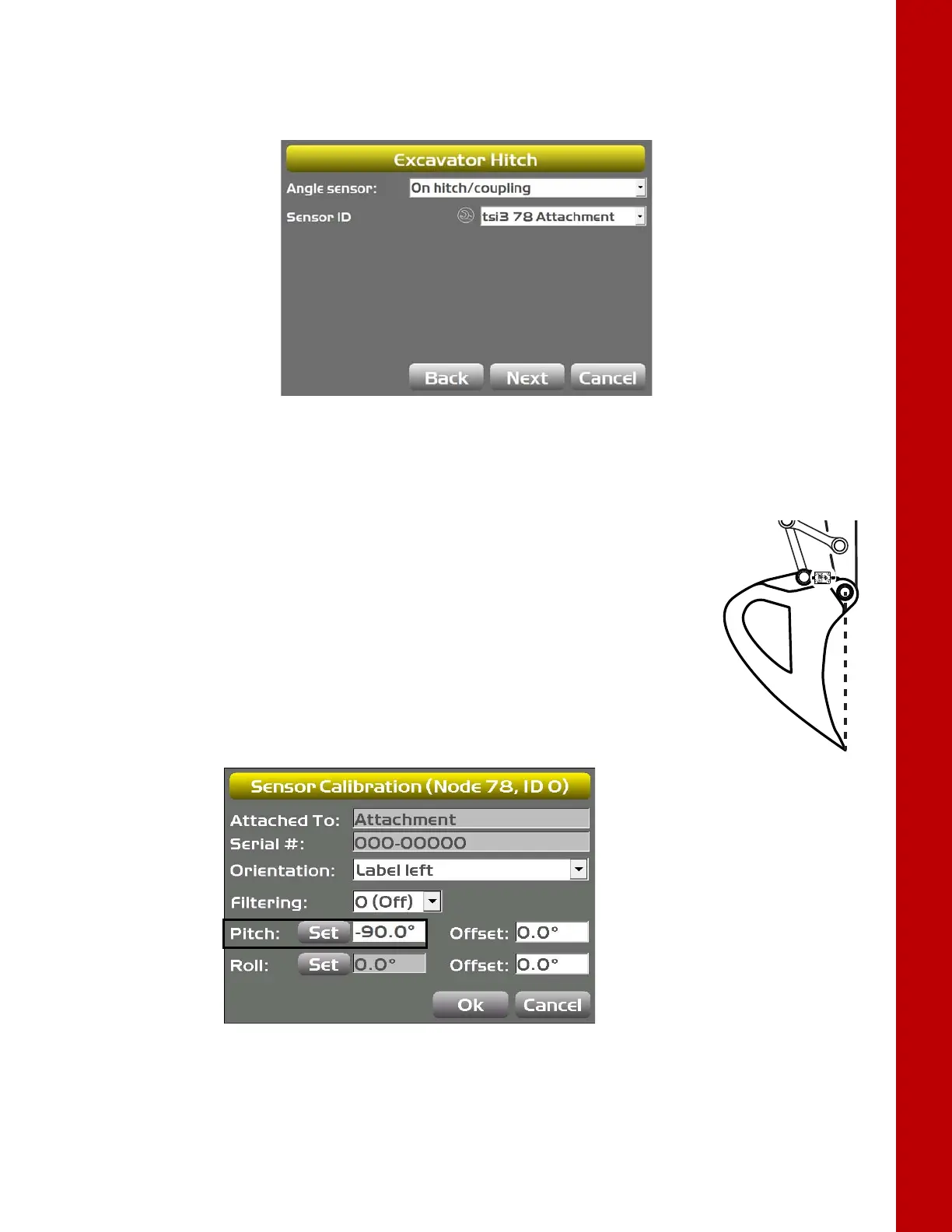

Figure 40: On Hitch/Coupling
2. Align the bucket pivot, and the bucket teeth.
3. In 3D-MC, tap Topcon Menu ButtonControl Machine setup, select
the applicable machine file for the job, and tap Edit.
4. Tap Next to navigate to the Excavator Hitch screen.
5. Tap the Wrench icon for the bucket sensor (Figure 41).
6. Tap Set next to Pitch, enter the Pitch value as -90.0 degrees, and tap Set
again (
Figure 41).
Figure 41: Set the Pitch Value to -90.0°
7. If this is the last sensor physically connected to the machine, see “CAN Termination” on page 39.
