3. Install the LS-B10W onto the bracket.
4. Route the cables as shown in Figure 18.

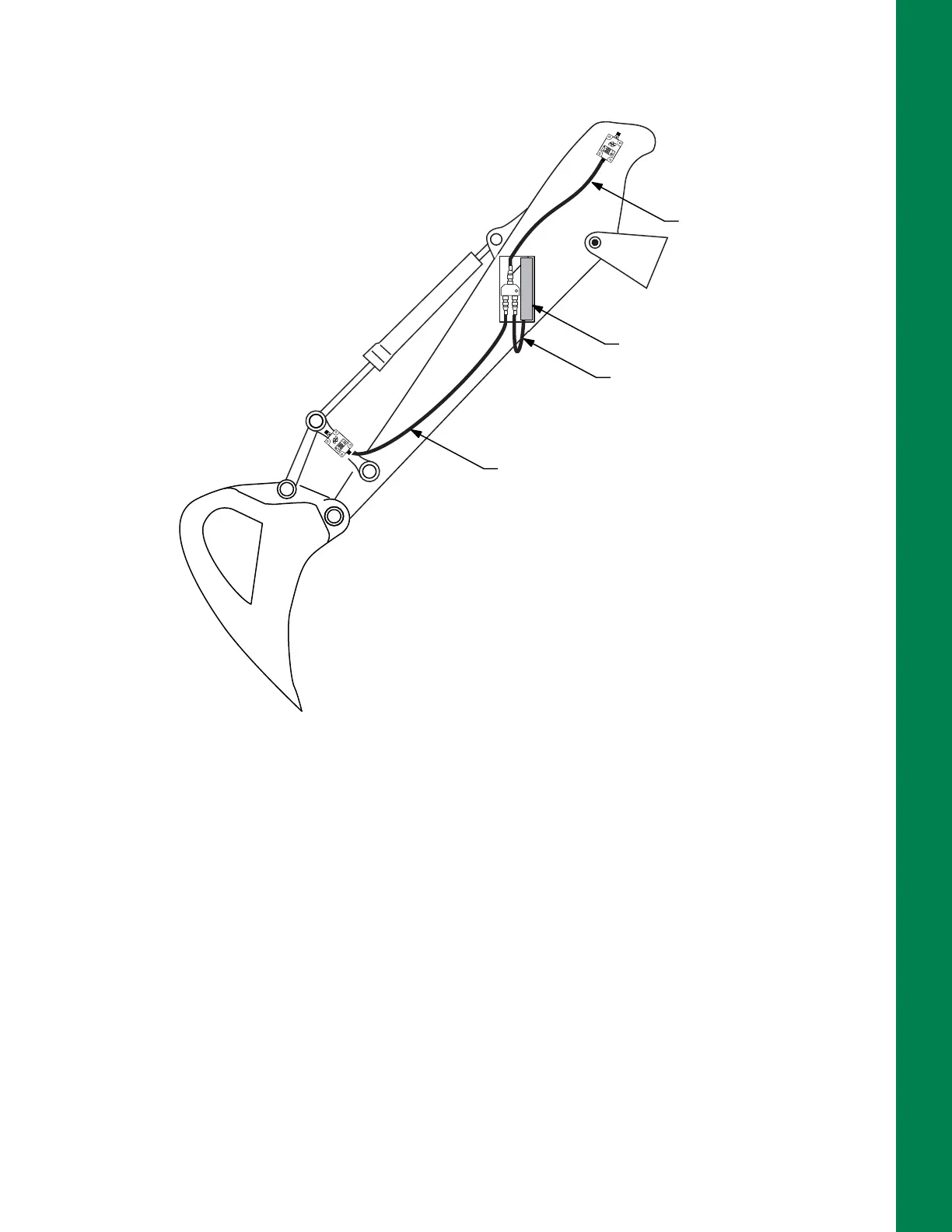

Figure 18: LS-B10W Cable Routing
MC-X1 Controller
Install the MC-X1 Controller onto the machine’s body using the magnet mounts provided, and connect
the cable to the GX-55 or GX-75 Display.
S-B10W Laser Receiver Setup
LS-B10W Laser Receiver
LS-B10W Cable
Attachment Sensor Cable
Stick Sensor Cable
To Next Page
