Body Sensor
For the TS-i3 dual axis body sensor, locate a convenient surface parallel to the boom pivot.
The recommended mounting location is on top of the body.
(Figure 17). If a secure mounting surface cannot be found on top of the body, mount the body sensor
to the alternative mounting location between the boom’s elevation cylinders.

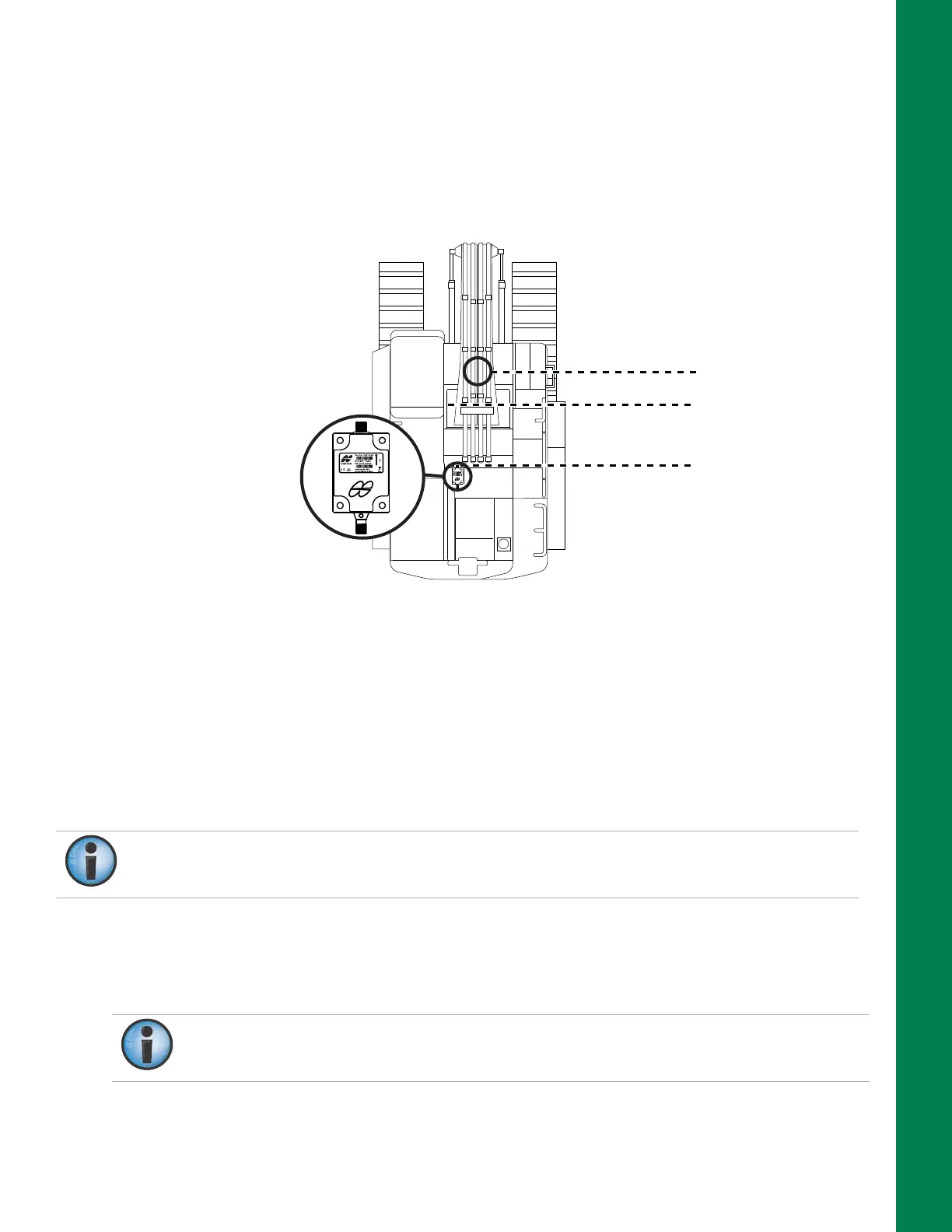

Figure 17: Body Sensor Mounting - Top View
LS-B10W
The LS-B10W Laser Receiver and bracket must be mounted on the left side of the stick. The following
section describes bracket mounting, cable routing, and LS-B10W Laser Receiver mounting.
1. Before installing the LS-B10W bracket, you must assemble the bracket kit; see the
LS-B10W
Indexing Bracket Assembly Instructions
(p/n: 7030-1370) for more information.
2. After assembling the bracket, clean the painted surface of the machine’s stick in the area where
the bracket will be mounted. Remove the backing from the double-sided tape and mount the
bracket onto the stick orientation as shown in
Figure 18.
Boom Pivot
Body Sensor
Mount Body Sensor
Parallel to Boom Pivot
Body Sensor
Alternate Location
A mark on the laser receiver and the cross hairs on the mounting bracket are used to
determine its position on the stick.
When determining mounting location, be cautious of limitations in cable lengths.
