Calibration
Secondary Boom Sensor (Optional)
29
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
Secondary Boom Sensor (Optional)
The same method used for calibrating the primary boom sensor is used to calibrate the secondary
boom sensor.
Make sure to check the Secondary Boom
check box (Figure 34). See “Boom Sensor” on page 28 for
details on calibrating the secondary boom sensor.

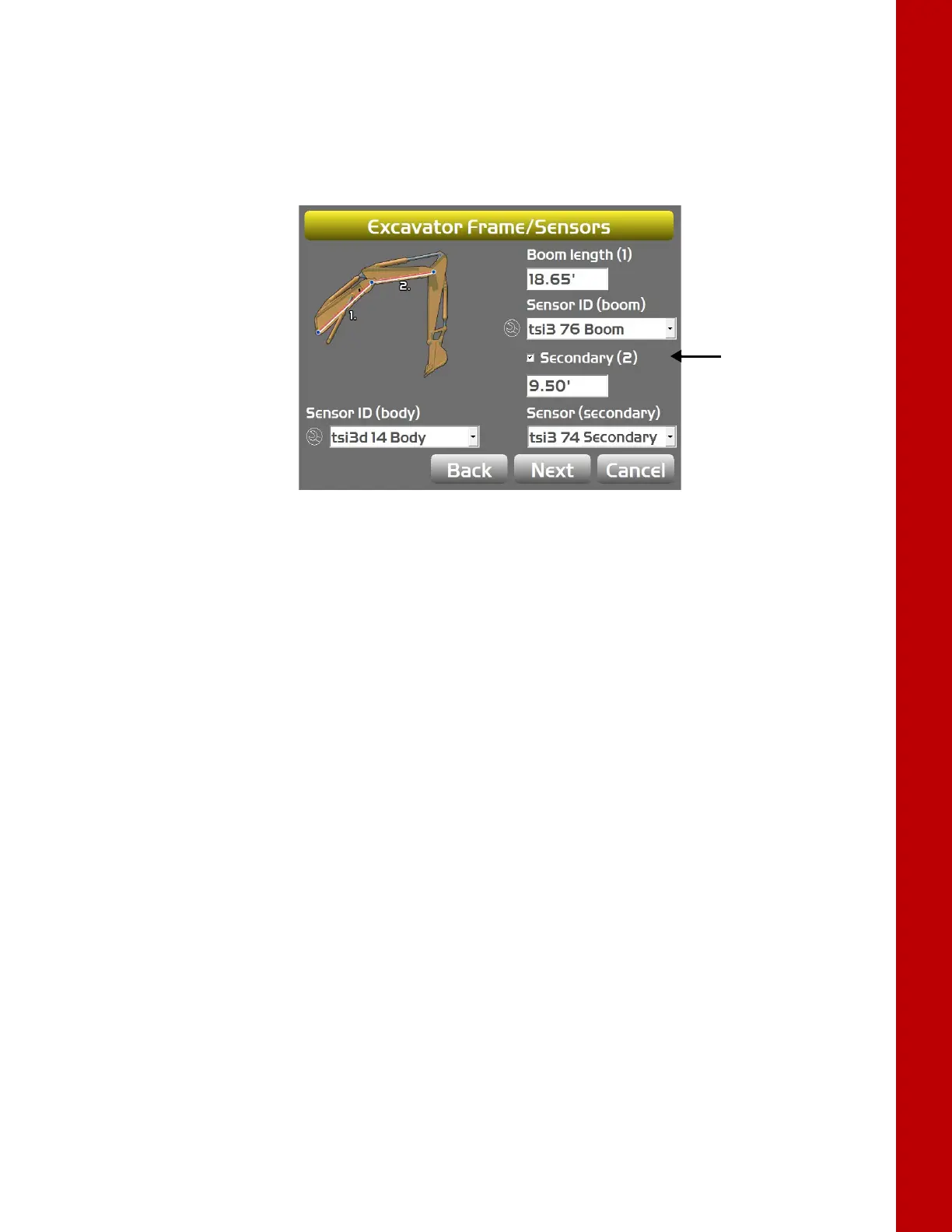

Figure 34: Secondary Boom Check Box
Tap Next to access the Excavator Stick screen.
Stick Sensor
1. Tap the Wrench icon that corresponds to the stick sensor (Figure 36 on page 30).
2. Select the correct orientation from the drop-down menu.
3. When performing the stick sensor calibration position the stick at -90 degrees. -90 degrees is
accomplished when the Bucket Pivot Pin is directly under the Stick Pivot Pin. A magnet and
plumb bob is recommended for this step.
4. Position the stick at -90° (Figure 35 on page 30).
