Topcon X-52 - Stick Sensor

Calibration
Stick Sensor
30
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01

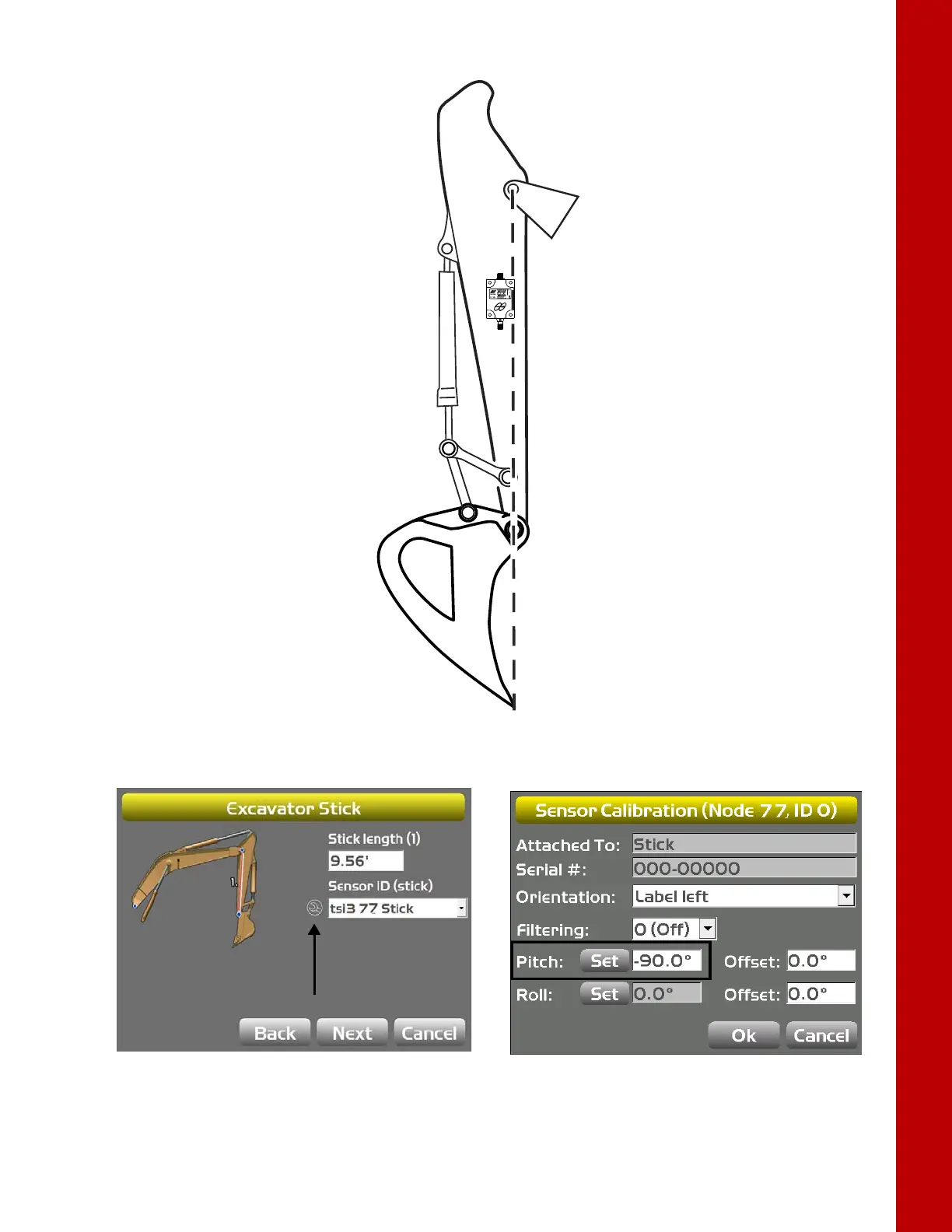

Figure 35: Stick at -90°
5. Tap Set next to Pitch, enter the Pitch value as -90.0°, and tap Set again (Figure 36).
Figure 36: Set Pitch Value to -90.0
