Installation
TS-i3 Sensors
12
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
Boom Sensor
For the boom sensor, locate a convenient surface parallel to the boom center. The mounting location
may be on the left or right side of the boom (from the cab point of view). Be sure to place the sensor
at a location away from the boom pivot

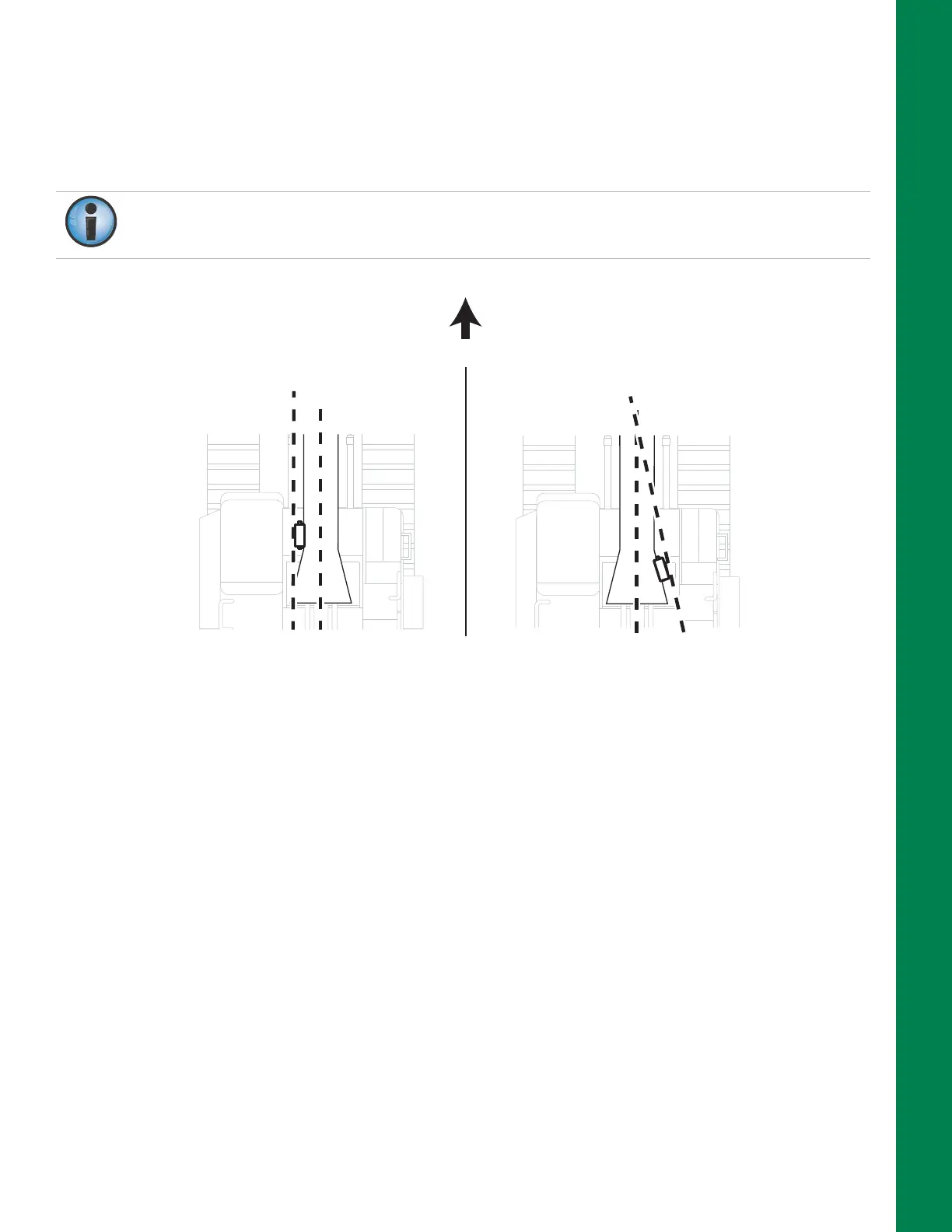

Figure 16: Boom Sensor Mounting
Secondary Boom Sensor
If a second boom is installed, see the previous section “Boom Sensor” on page 12 for secondary boom
sensor mounting locations.
Placing the boom sensor on a tapered section will cause calculation errors.
CL
Correct
Side Location
CL
Incorrect Taper Location
Direction of Travel ( Away from Cab)
