Machine Measurements and Configuration
Lightbars
24
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
Lightbars
1. Tap Next to access the Light Bars screen.
2. Enter the desired settings.

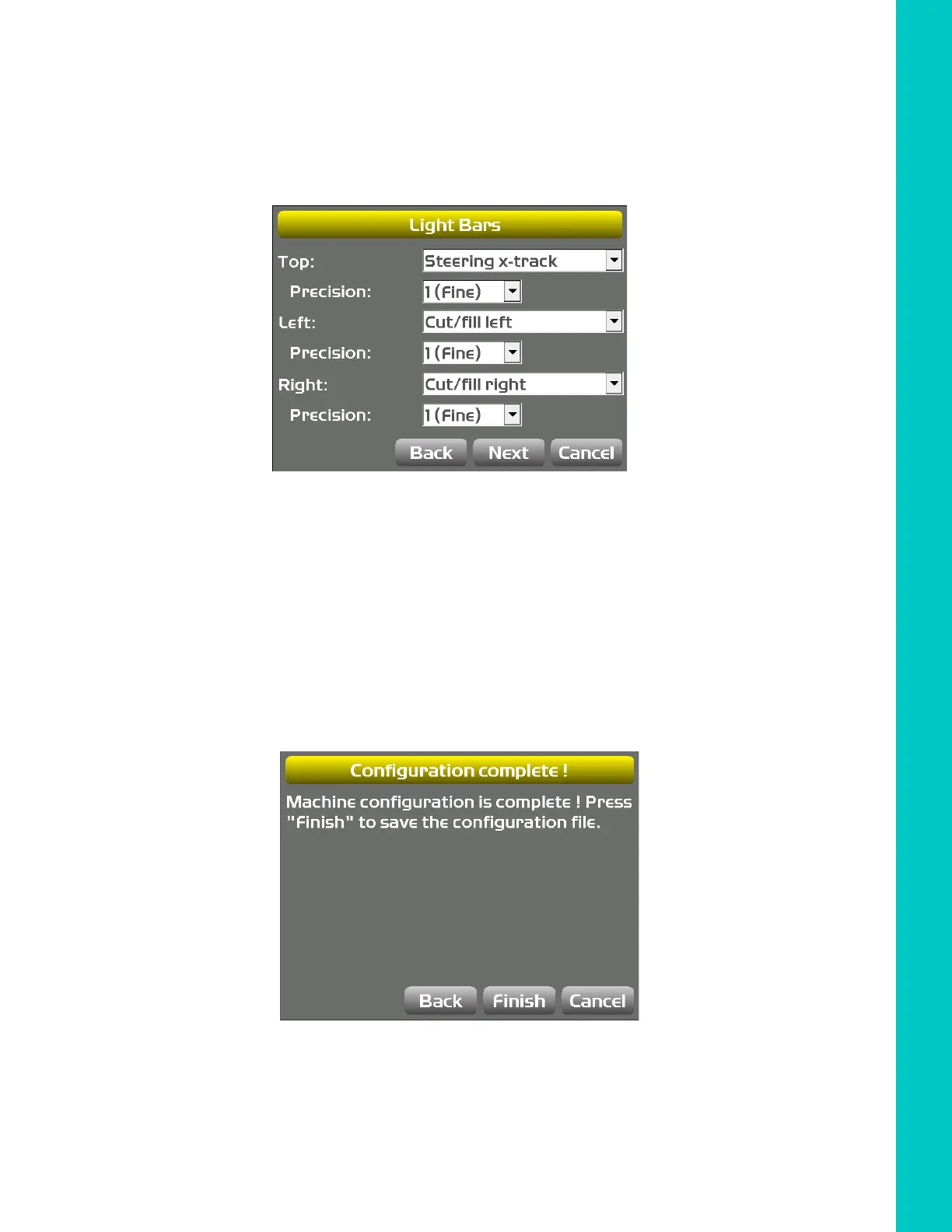

Figure 26: Lightbars
Configuration Complete
1. Tap Next to access the Configuration Complete! screen.
2. Enter the desired settings.
Figure 27: Configuration complete!
