Machine Measurements and Configuration
Entering Sensor Information
20
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01
LS-B10W
Entering Sensor Information
Power up the system and allow several minutes for the 3D-MC software to detect the sensors.
Before calibrating the sensors on the excavator systems, set up each sensor in 3D-MC. You will need
the following information:
• the last two digits of the sensor’s serial number
• the physical orientation of the sensor mounting
Step 1: Configure the Machine File and the excavator options.
1. In 3D-MC, tap Topcon Menu ButtonControlMachine setup.
2. Select a current machine file and tap Edit, or tap New to create a new machine file.
3. On the Configuration name/type screen, enter or select the appropriate data as needed
(
Figure 19).

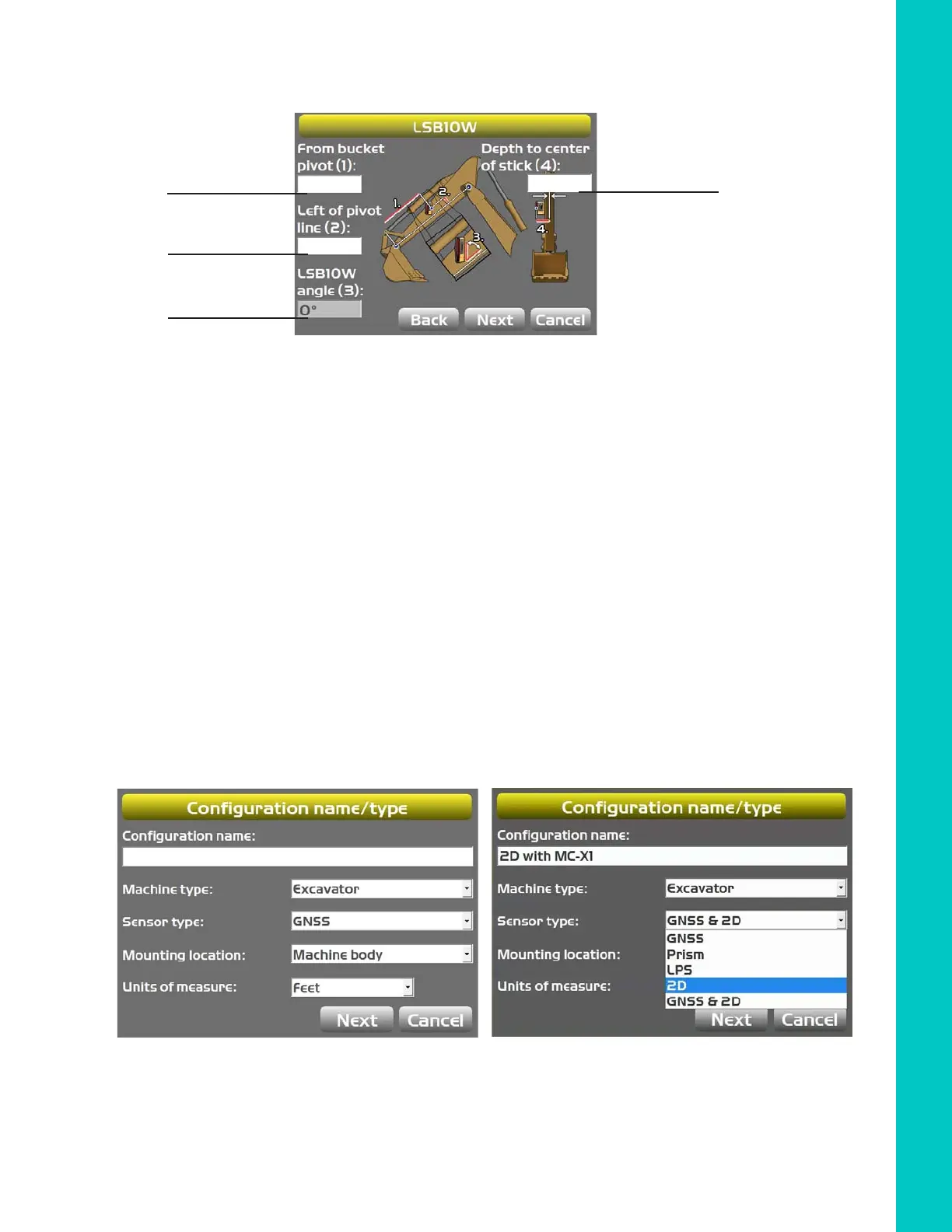

Figure 19: Configuration name/type
4. Tap Next to navigate to the Excavator Options screen and select None as the Position
Input (
Figure 20 on page 21).
ĞƉƚŚĨƌŽŵĞŶƚĞƌůŝŶĞŽĨ^ƟĐŬ
Distance from Bucket Pivot
to LSB10W
Distance from Left of Pivot
Angle to the Stick Centerline
Note: Only determinded during
calibration of the machine.
