Topcon X-52 - LS-B10 W Laser Receiver Measurements

Calibration
Calibrating the LS-B10W
41
X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01

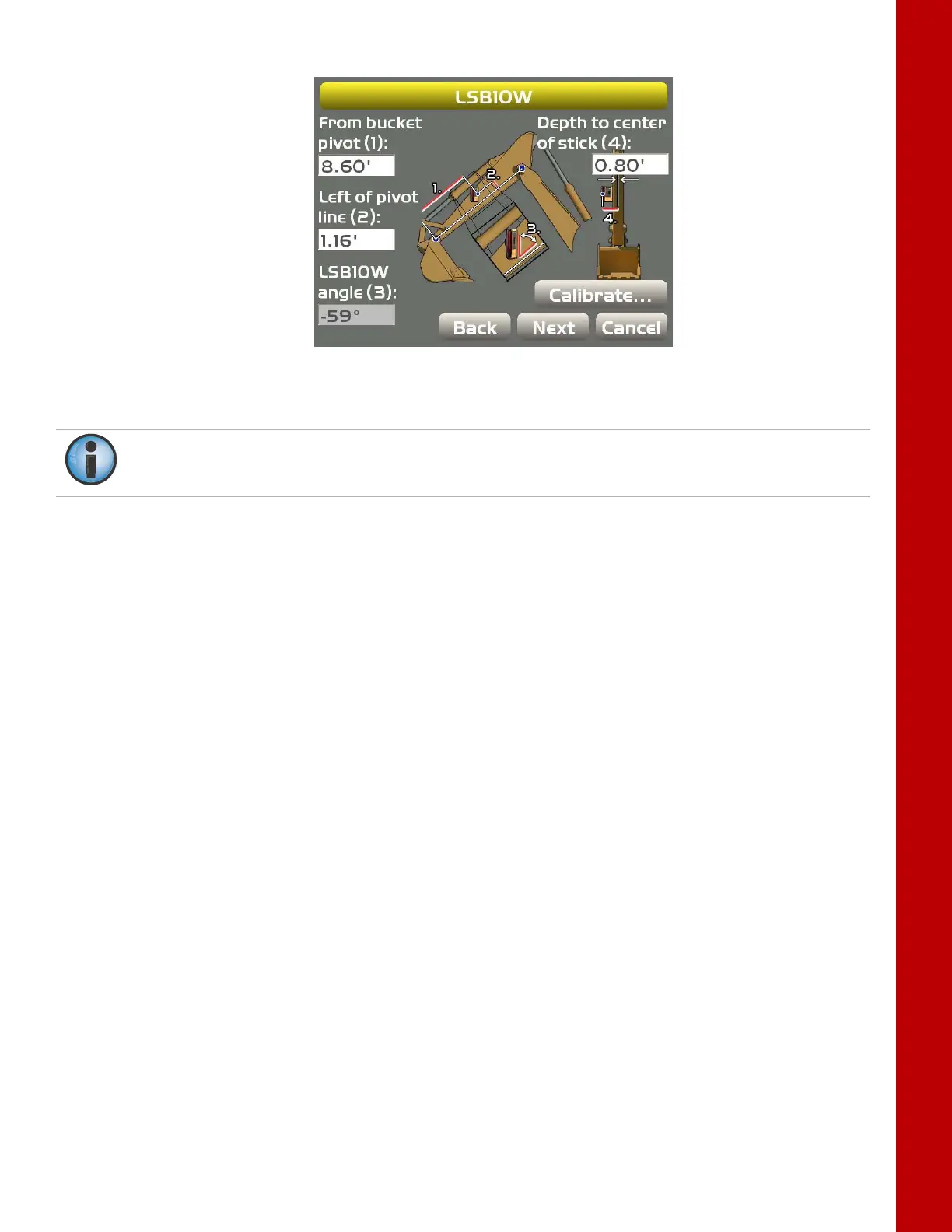

Figure 50: LS-B10W Laser Receiver Measurements
If the stick sensor is replaced with a new tilt sensor, you must recalibrate the LS-B10W Laser Receiver.
To test the LS-B10W calibration, see “LS-B10W Test” on page 45.
