Since the MIPI DSI display adapter connector is hermaphroditic, special attention must be taken at
the pin numbering. Even though the adapter and the carrier board connector are identical, the
footprint with the pin numbering must be different.

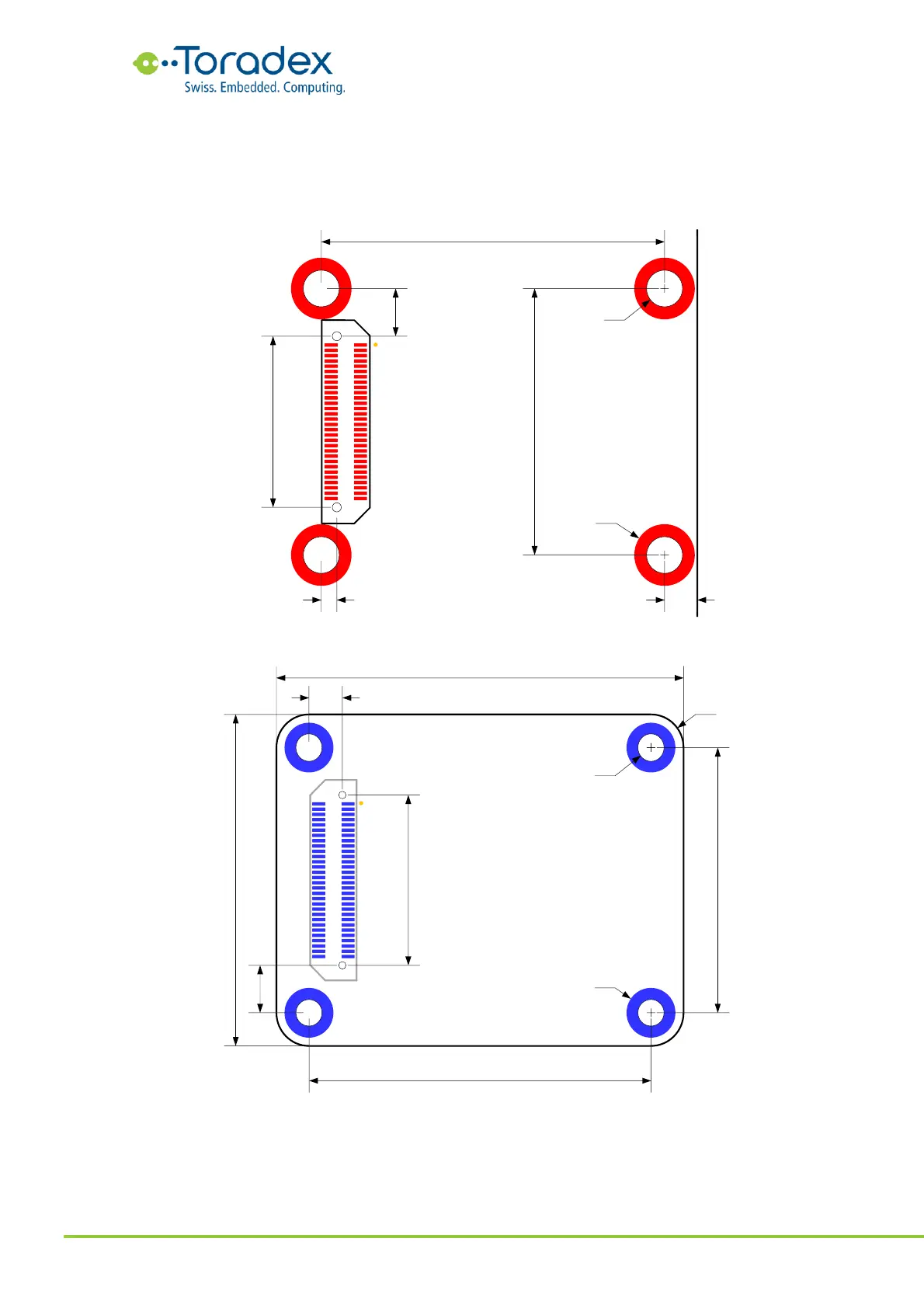

Figure 34: Carrier board dimensions for MIPI DSI display adapter (top view)
Figure 35: MIPI DSI display adapter dimensions (top view through the PCB)
42.00
32.00
20.55
5.725
1.90
Ø4.40
Ø7.40
4.00
Pin 1Pin 2
Pin 59Pin 60
PCB Edge
50.00
40.00
42.00
32.00
Pin 1Pin 2
Pin 59Pin 60
4.10
20.55
5.725
R 4.00
Ø3.20
Ø6.00
