HYDRAULIC LIFT ASSEMBLY
7-16
TX 413 Service Manual

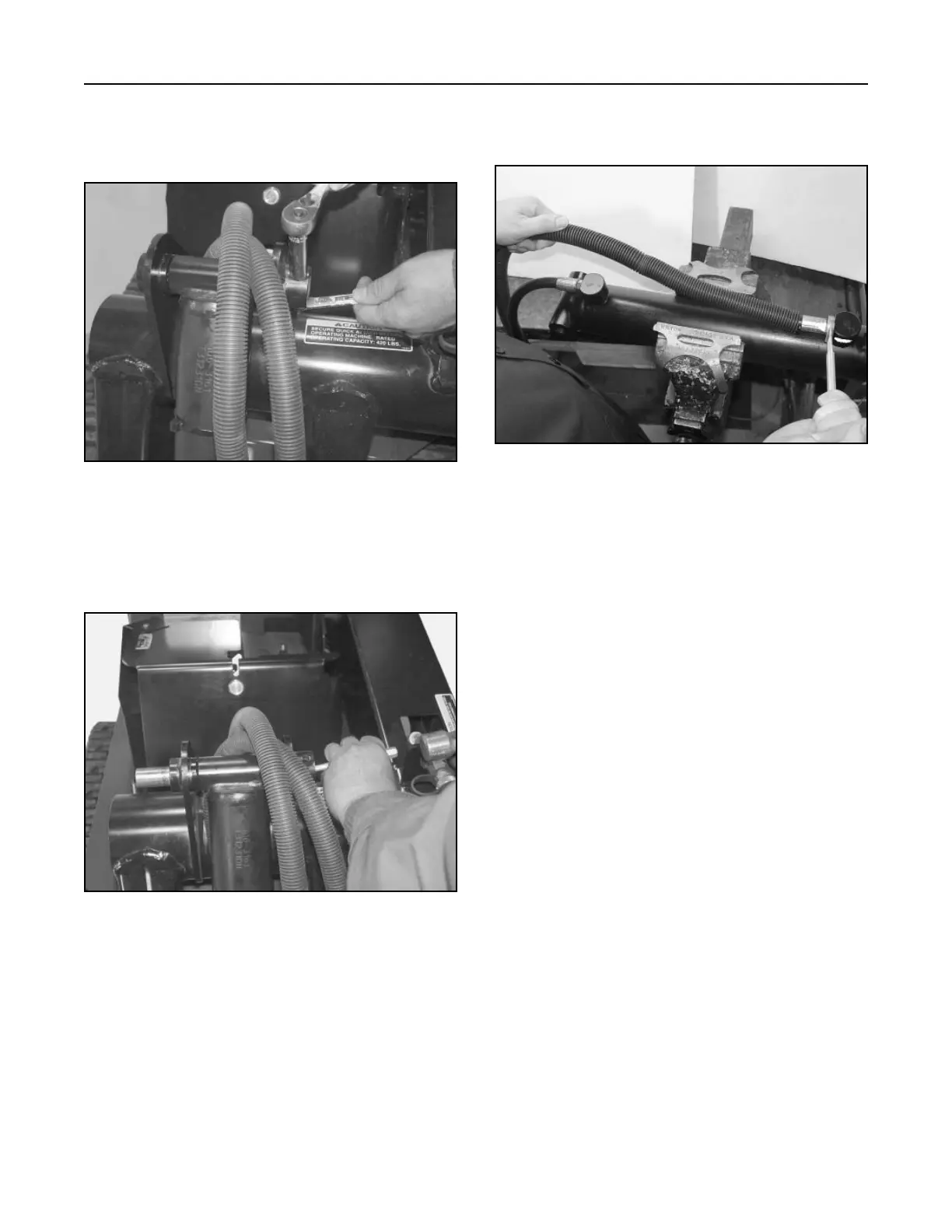

14. Remove the hydraulic hoses from the tilt cylinder
(Fig. 241).
Figure 241 DSC-0986
15. For information on repairing the Tilt Hydraulic
Cylinder, refer to the Hydraulic Cylinder Service
section of this manual, page 7-40.
Hydraulic Tilt Cylinder Installation
Note: As a reminder, prior to connecting the
hydraulic lines, the O-rings and seals
should be replaced with new ones and
lightly lubricated with petroleum jelly.
13. Using a drift punch and hammer, drive the pivot
pin out of the barrel end of the hydraulic tilt
cylinder and remove the cylinder (Fig. 240).
Figure 240 DSC-0985
12. Remove the bolt and nut on the pivot pin located
on the barrel end of the hydraulic tilt cylinder (Fig.
239).
Figure 239 DSC-0983
