10-3TX 413 Service Manual
Rev. 001
Reassemble in reverse order.
Auger Reassembly
1. While lowering the arms, drive slowly backwards
until the auger assembly is horizontal (Fig. 005).

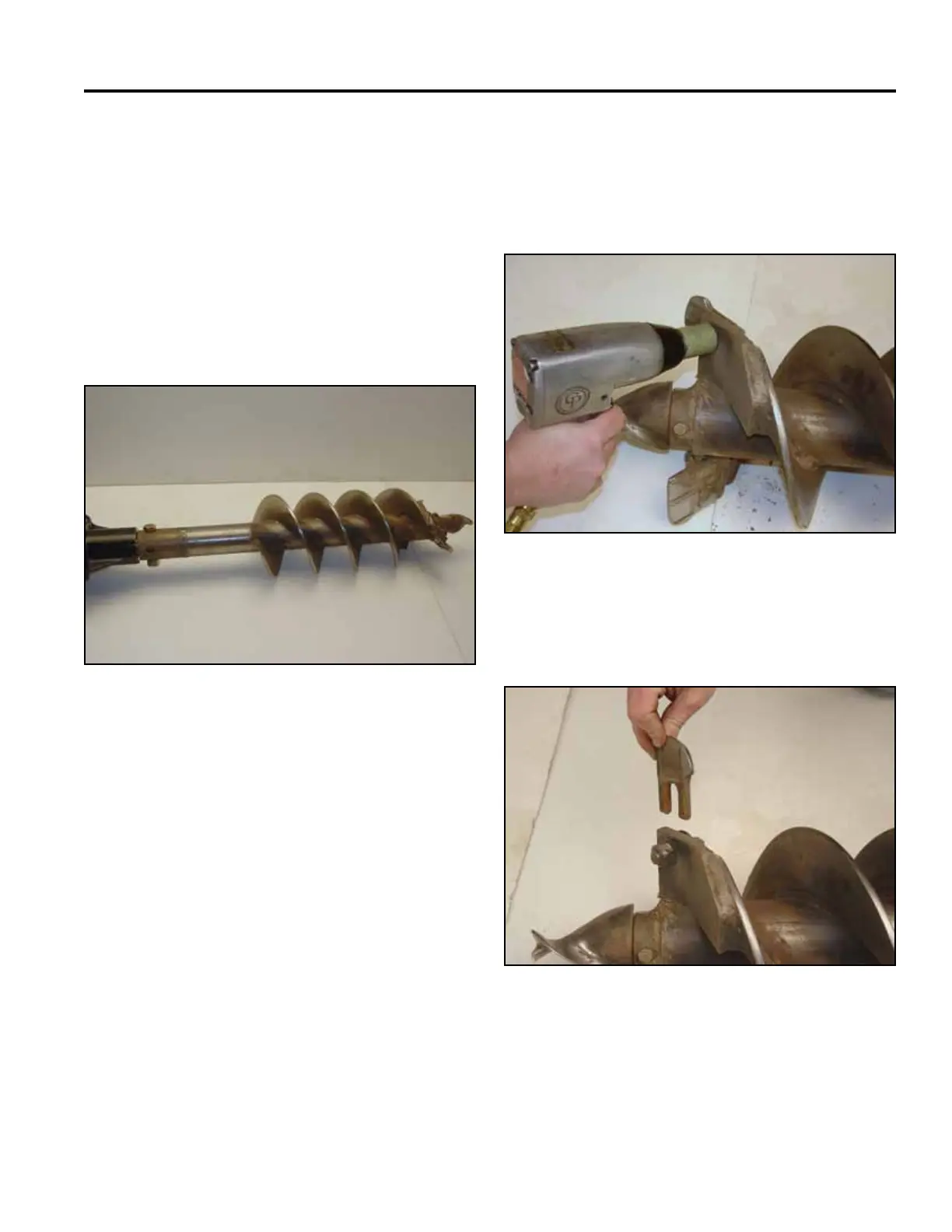

Fig 005 CLR DSC-0213
2. Stop the engine.
3. Remove teeth from auger bit by loosening nuts on
the carriage bolts enough for the teeth to slide out
(Fig. 006).
Fig 006 CLR DSC-0221
Auger Tooth and Fishtail Shank
Removal
Fig 007 CLR DSC-0222
Repeat on other lock nuts that hold gauge and
wisdom teeth (Fig. 007).
