HYDRAULIC SYSTEM
6-2
TX 413 Service Manual
Hydrostatic Pump
(Left Drive)
7
Hydrostatic Pump
(Right Drive)
3B
3A
Wheel Motor
(Right Drive)
Wheel Motor
(Left Drive)
2
4A
4B
1
5
6
1. Hydraulic Return Line to
Reservoir Tank
2. Hydrostatic Pumps Case Drain
Line to Reservoir Tank
3A. Right Drive Hydraulic Line
3B. Right Drive Hydraulic Line
4A. Left Drive Hydraulic Line
4B. Left Drive Hydraulic Line
5. Case Drain Hydraulic Line
6. Inlet Hydraulic Line (lower pump)
7. Inlet Hydraulic Line (upper pump)
2
4B
4A
1
1
6
4A
4B

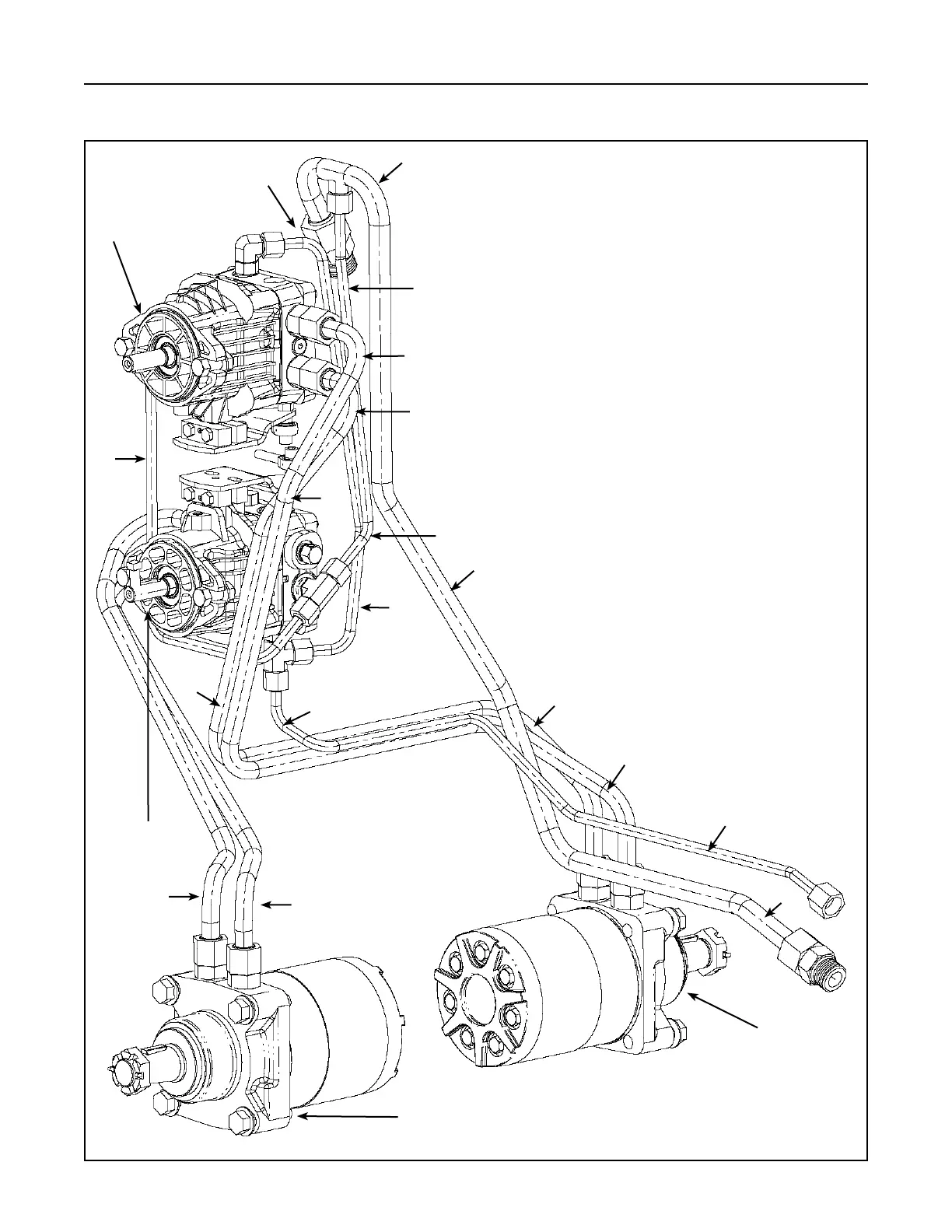

Hydrostatic Pump Reference Drawing
5
