ATTACHMENTS
10-29TX 413 Service Manual
Rev. 001

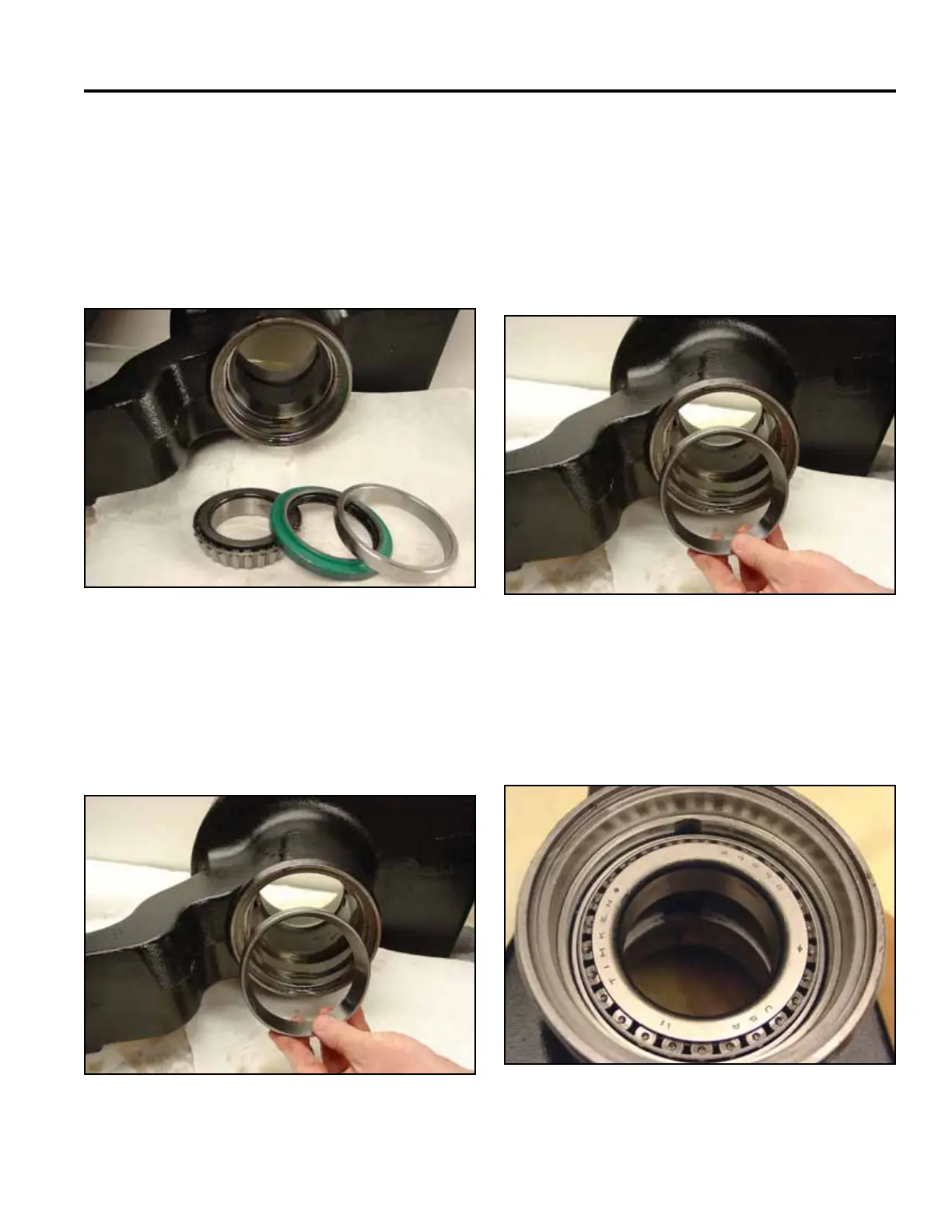

10. The roller bearing is only removed after the spacer
and shaft seal have been pressed out. Inspect
bearings for any damage or wear. Replace if
damaged.
Note: If the spacer and shaft seal are driven out of
the boom mount, replace them. Do not reuse
(Fig. 104).
Fig 104 CLR DSC-0311
11. Drive or press out bearing cups from boom mount
(Fig. 105).
Note: Do not reuse bearing cups if they are driven
out of the boom mount.
Fig 105 CLR DSC-0314
Fig 107 CLR DSC-0336
2. On the shaft side of the boom mount, place a
bearing into the cup with taper end facing down
toward the center. The manufacturer name should
face up (Fig. 107).
Fig 106 CLR DSC-0314
1. Install new bearing cups with the taper end or the
manufacture name stamp towards center. Press or
drive both bearing cups until fully seated (Fig. 106).
Note: Assemble the remaining bearing components
into the shaft side rst.
Reassemble Trencher
