Rev. 000
HYDRAULIC LIFT ASSEMBLY
7-58
TX 413 Service Manual

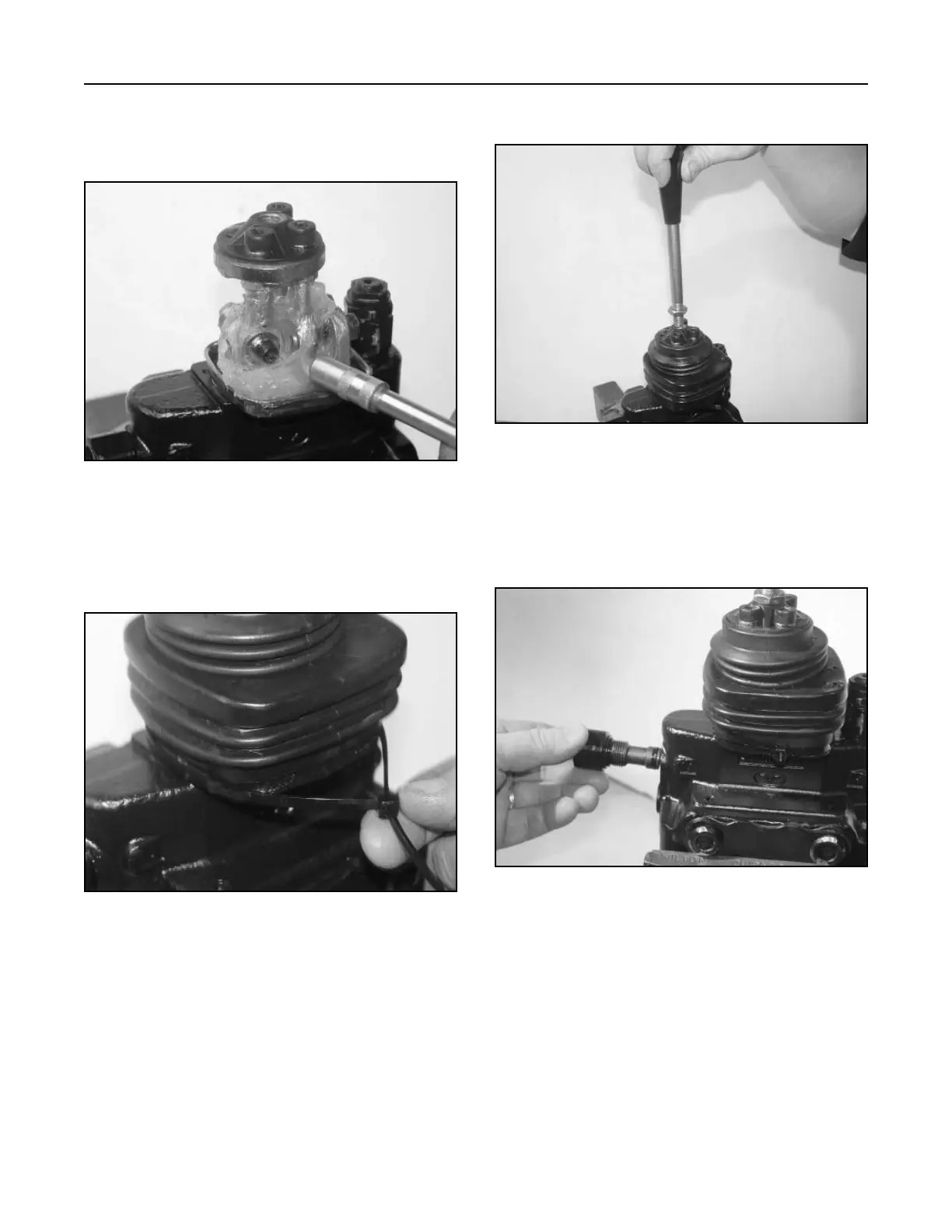

14. Lubricate all articulated parts inside the
mechanical joystick area with synthetic base
grease grade NLGI2 (Fig. 395).
16. Install the lift/tilt handle (Fig. 397).
Figure 395 DSC-1434
Figure 397 DSC-1436
15. Install the rubber bellows over the base plate and
install the tie strap in the groove of the rubber
bellows (Fig. 396).
Power Beyond Sleeve-Port
This sleeve seals off the return oil port and directs the
hydraulic oil to the auxiliary valve (Fig. 398).
Figure 396 DSC-1435
Figure 398 DSC-1437
To Next Page
