Rev. 000
TX 413 Service Manual
7-23

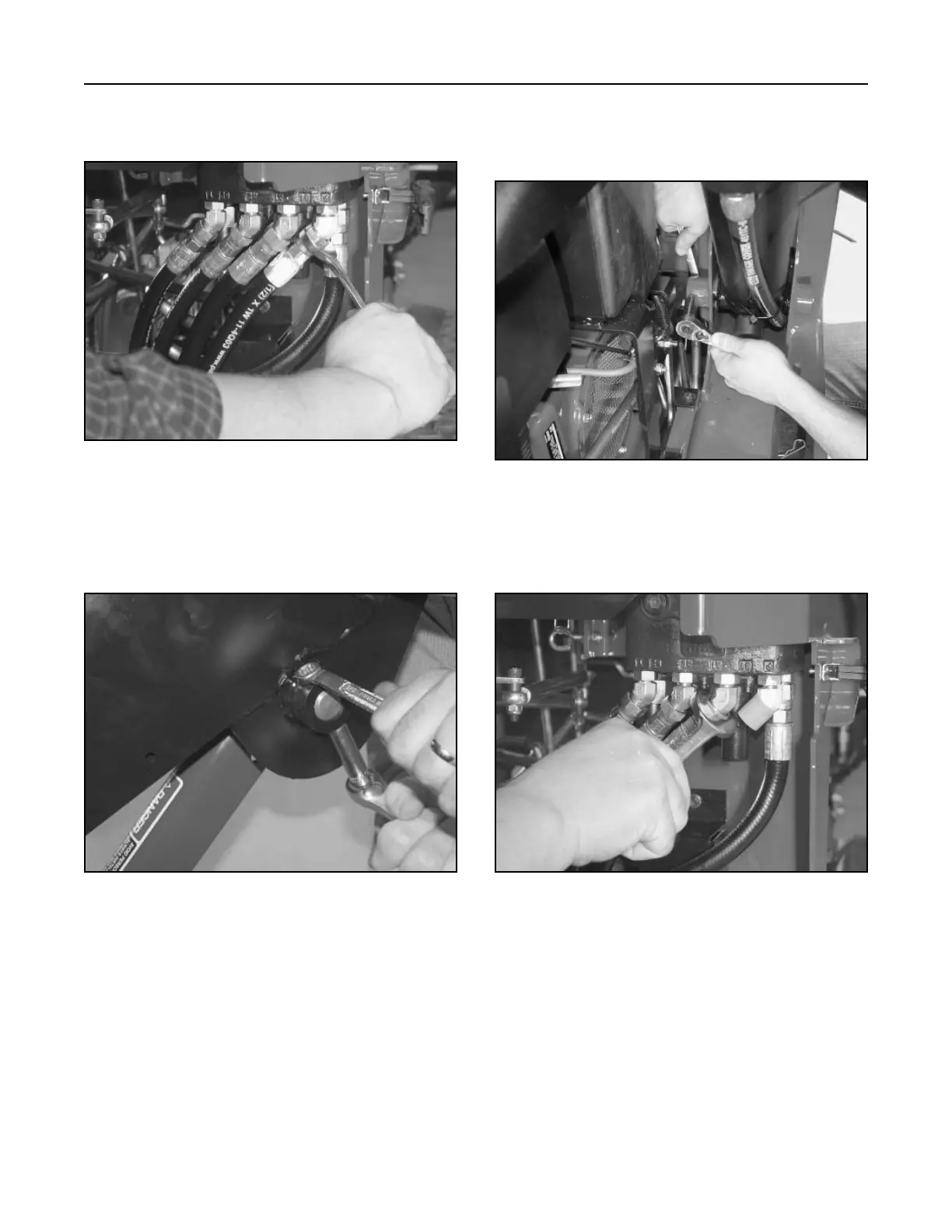

HYDRAULIC LIFT ASSEMBLY
6. Remove the bolt and nut on the pivot pin located
at the barrel end of the hydraulic cylinder (Fig.
267).
Figure 267 DSC-0997
7. Remove the hydraulic hose from the fitting on the
hydraulic lift valve (Fig. 268).
Figure 268 DSC-1024
5. Remove the bolt and nut on the pivot pin located
at the ram end of the hydraulic lift cylinder (Fig.
266).
Figure 266 DSC-0996
Figure 265 DSC-1025
4. Remove the hydraulic hose from the fitting on the
hydraulic lift valve (Fig. 265).
