Rev. 000
TX 413 Service Manual
7-53
HYDRAULIC LIFT ASSEMBLY
Note: Visually inspect spool outside surfaces
for scratches. Deep scratches are
unacceptable and the spool needs to
be replaced. Scratches that are deep
enough to catch the fingernail are also
unacceptable, and the spool needs to be
replaced.
Before replacing the spool, clean and
inspect the inner bore for damage. Check
the condition of the o-rings, particularly
for metallic particles embedded in the o-
ring surface. Damage to o-ring grooves,
particularly on the sealing surface,
is unacceptable. In the event that an
unacceptable condition occurs, the valve
needs to be replaced (Fig. 378).
Figure 378 DSC-1410

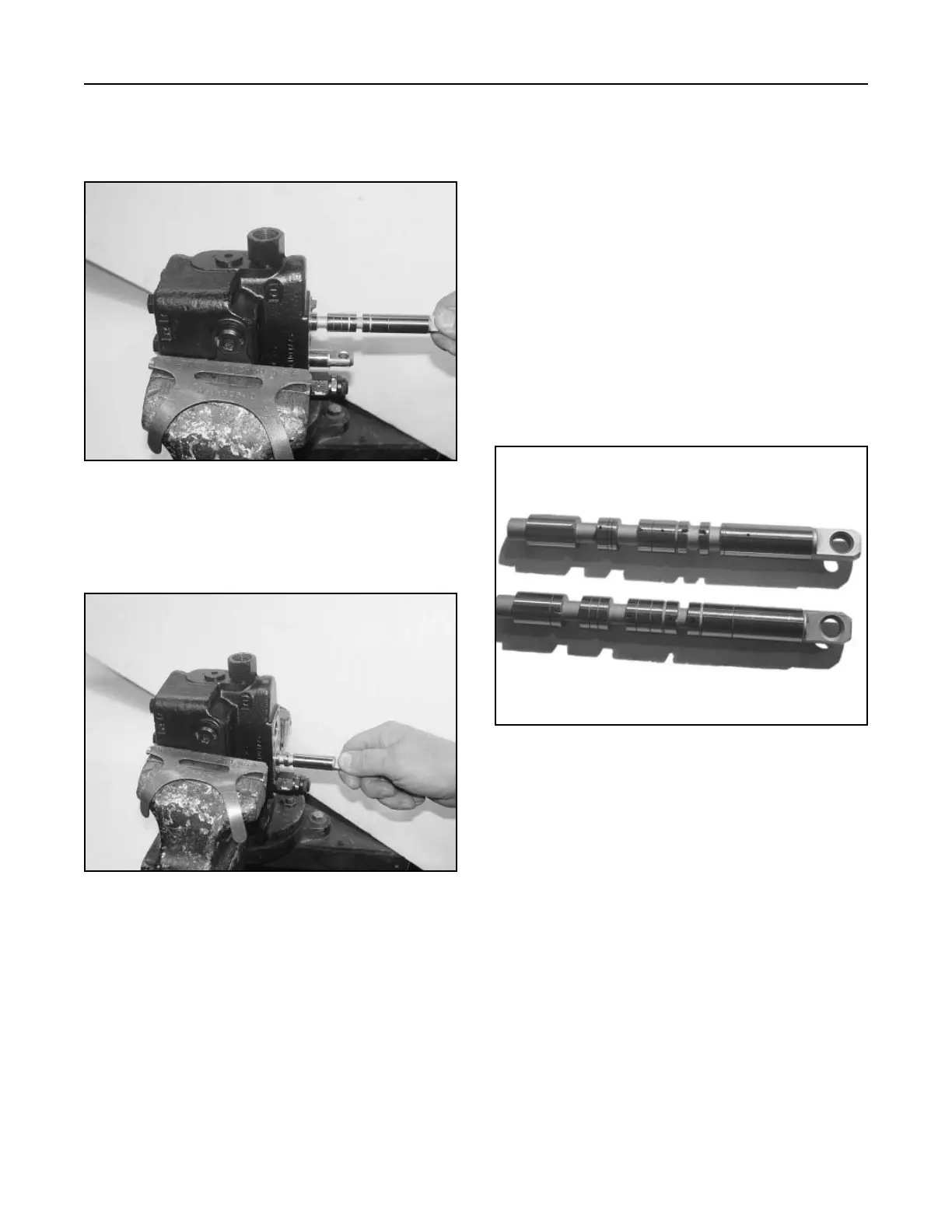

11. Remove the lift spool by twisting and pulling the
spool out of the valve (Fig. 377).
Figure 377 DSC-1408
A. Lift Spool with small relief holes
B. Tilt Spool
A
B
10. Turn the valve in the vise sideways. Remove the
tilt spool by twisting and pulling the spool out the
top of the valve (Fig. 376).
Figure 376 DSC-1407
To Next Page
