TX 413 Service Manual
8-5
DRIVE SYSTEM
Figure 431 DSC-0795
Figure 433 DSC-0798
Figure 432 DSC-0796
Figure 434 DSC-0801

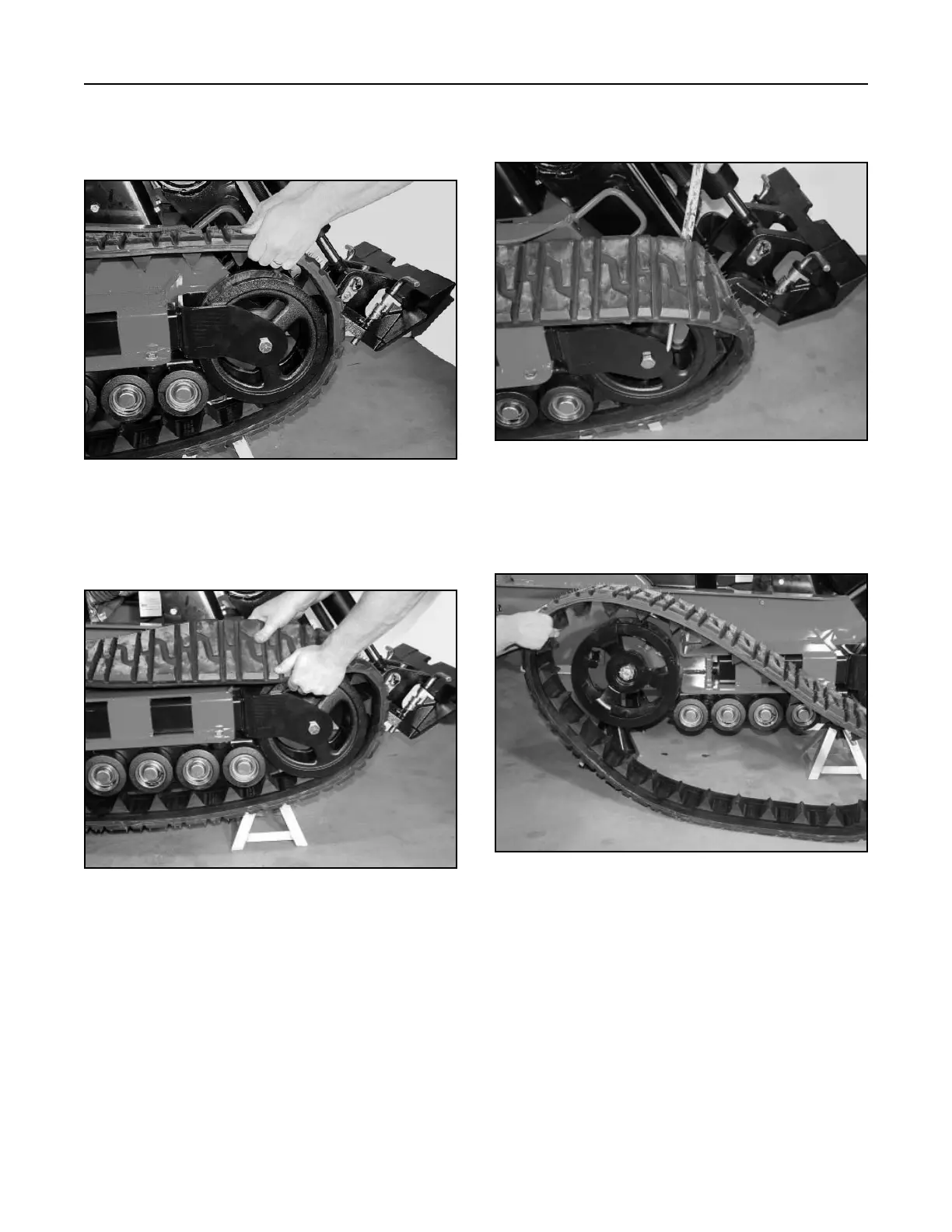

4. Begin removing the track at the top of the tension
wheel, lifting up on the the track removing any
slack from the bottom (Fig. 431).
6. Use a pry bar to help assist in removal of the
track (Fig. 433).
5. Start working the track off the front tension wheel
while rotating the track forward (Fig. 432).
7. Remove the track off the rear drive wheel (Fig.
434).
