Rev. 000
TX 413 Service Manual
8-17
DRIVE SYSTEM

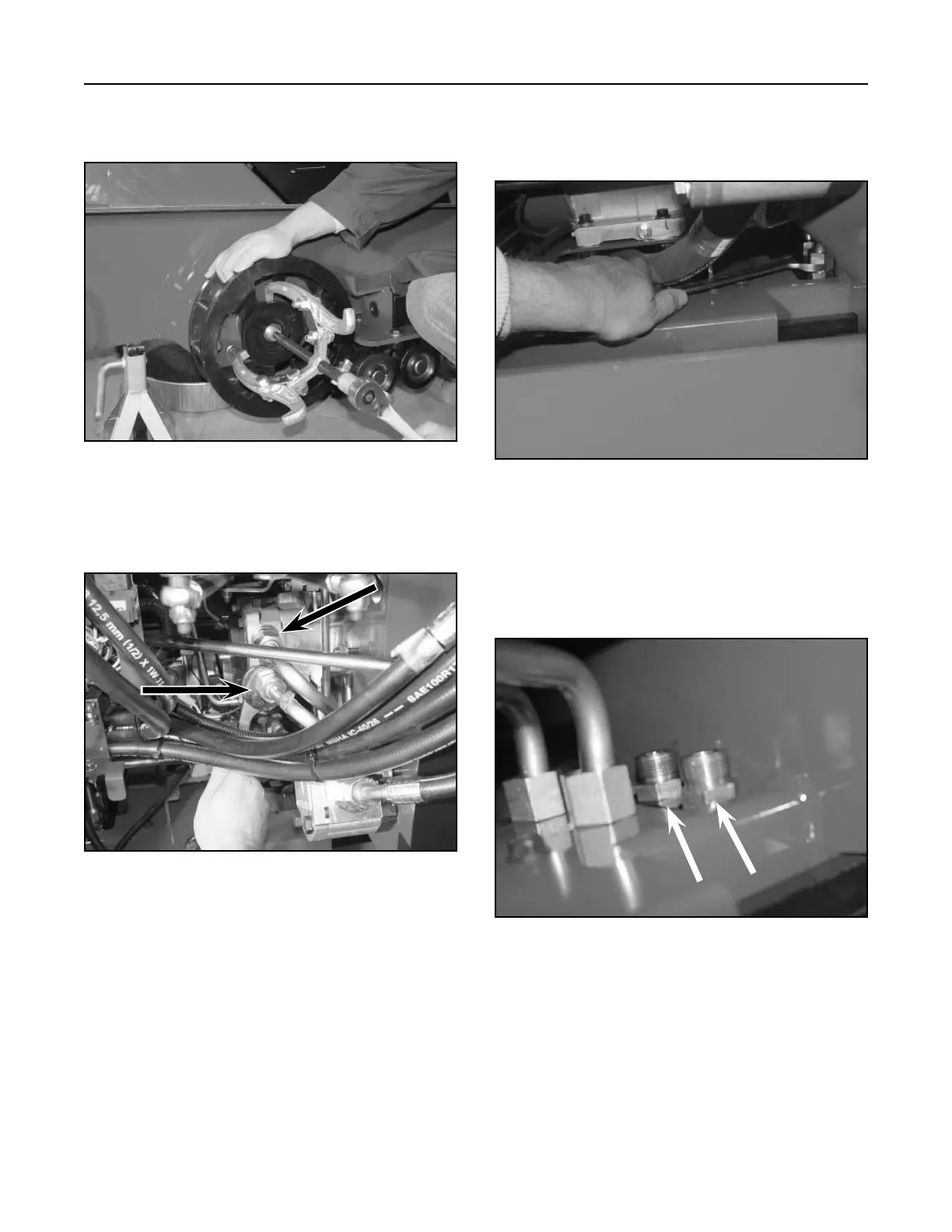

7. Using a wheel puller, remove the drive wheel
(Fig. 477).
Figure 477 DSC-0839
8. Loosen the hydraulic line nuts located at the
hydrostatic pump (Fig. 478).
Figure 478 DSC-0845
9. Using an off-set open-end wrench, remove both
hydraulic line nuts from the fittings located on the
top of the wheel motor (Fig. 479).
Figure 479 DSC-0842
10. Remove both hydraulic fittings located at the top
of the wheel motor (Fig. 480).
NOTE: Remove the belt cover for easier access
to the right hand hydraulic fitting.
Figure 480 DSC-0846
