DRIVE SYSTEM
6. Install the brake cable through the bracket on the
left side of the frame (Fig. 520).

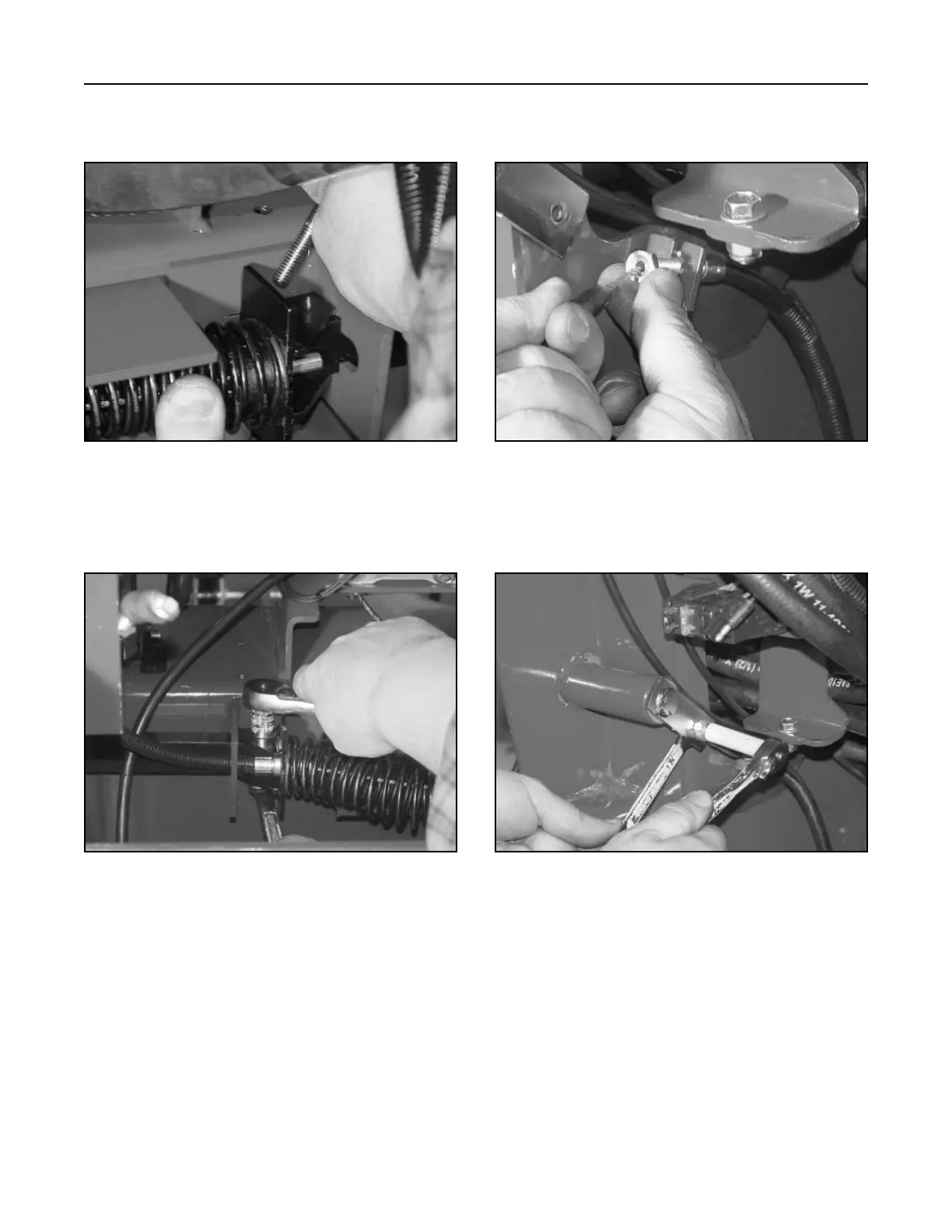

Figure 518 DSC-1289
Figure 520 DSC-1291
5. Tighten the bolt and nut on the right and left
cable brackets (Fig. 519).
7. Attach the brake cable with a bolt and nut to the
brake shaft assembly (Fig. 521).
Figure 519 DSC-1290
Figure 521 DSC-1265
8-28
TX 413 Service Manual
4. Install bolt and nut through the right side cable
bracket and the bar bracket (Fig. 518).
