TESTING
9-10
TX 413 Service Manual
Rev. 000
4. Start the engine and bring the engine speed up to
full throttle.

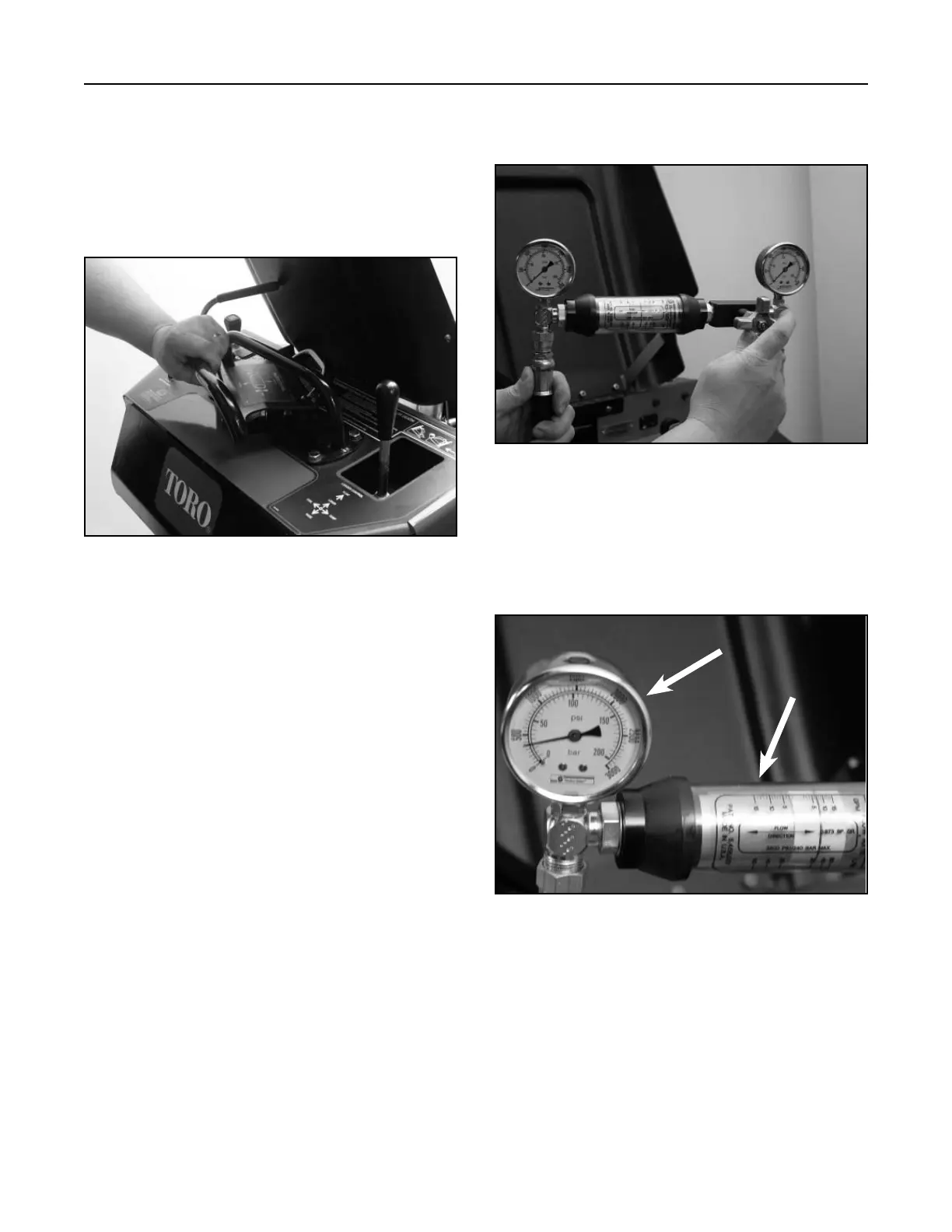

5. Move the traction control in the left direction, in
full forward motion (Fig. 551). Operate without
any load for approximately 2 minutes; this allows
the system oil temperature to rise.
Figure 551 DSC-2933
Note: Raising the system oil temperature will
make a difference in the readings you
receive. To complete the test accurately,
the oil temperature must be near system
operating temperatures. Suggested
temperature range 160° - 210° F (71.1° -
98.9° C).
Figure 553 DSC-2937
7. At 300 psi (21 bar), note gpm reading (Fig. 553).
Note: The gpm reading can vary between left and
right hydrostatic pumps.
Figure 552 DSC-2934
6. Turn the restriction valve until you read 300 psi
(21 bar) (Fig. 552).
A
B
A. PSI reading B. GPM reading
