ENGINE
21. Disconnect the oil switch, black to white wire (Fig.
035).

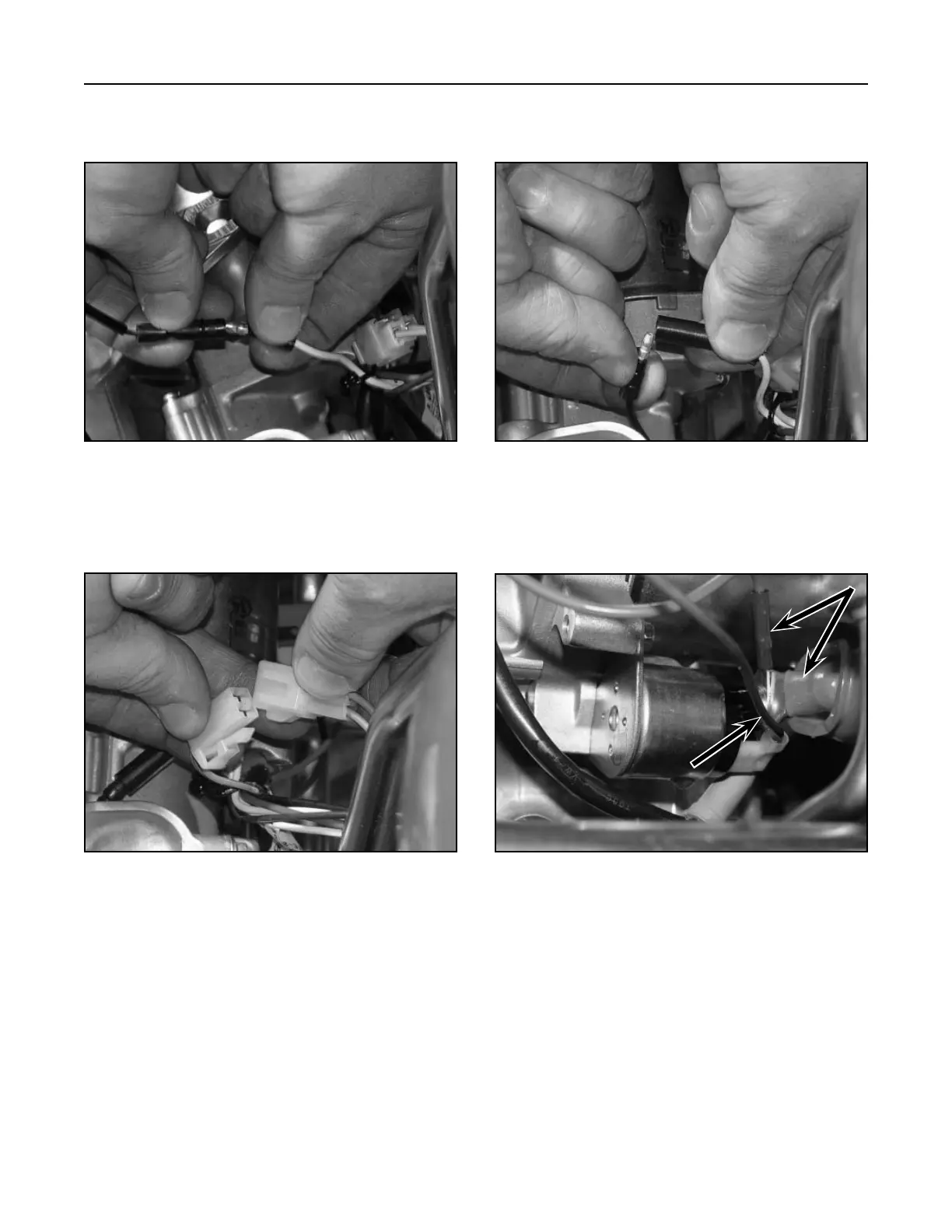

Figure 035 DSC-1107
22. Disconnect the blue wire and two red wires on
the starter assembly (Fig. 036).
Figure 036 DSC-1111
4-6
TX 413 Service Manual
A - Blue wire B - Red wires
A
A
B
B
19. Disconnect the charge coil wire, black to white
(Fig. 033).
Figure 033 DSC-1103
20. Disconnect the plug and jack connection for the
charge coil leads to the rectifier (Fig. 034).
Figure 034 DSC-1105
