TX 413 Service Manual
4-15
ENGINE

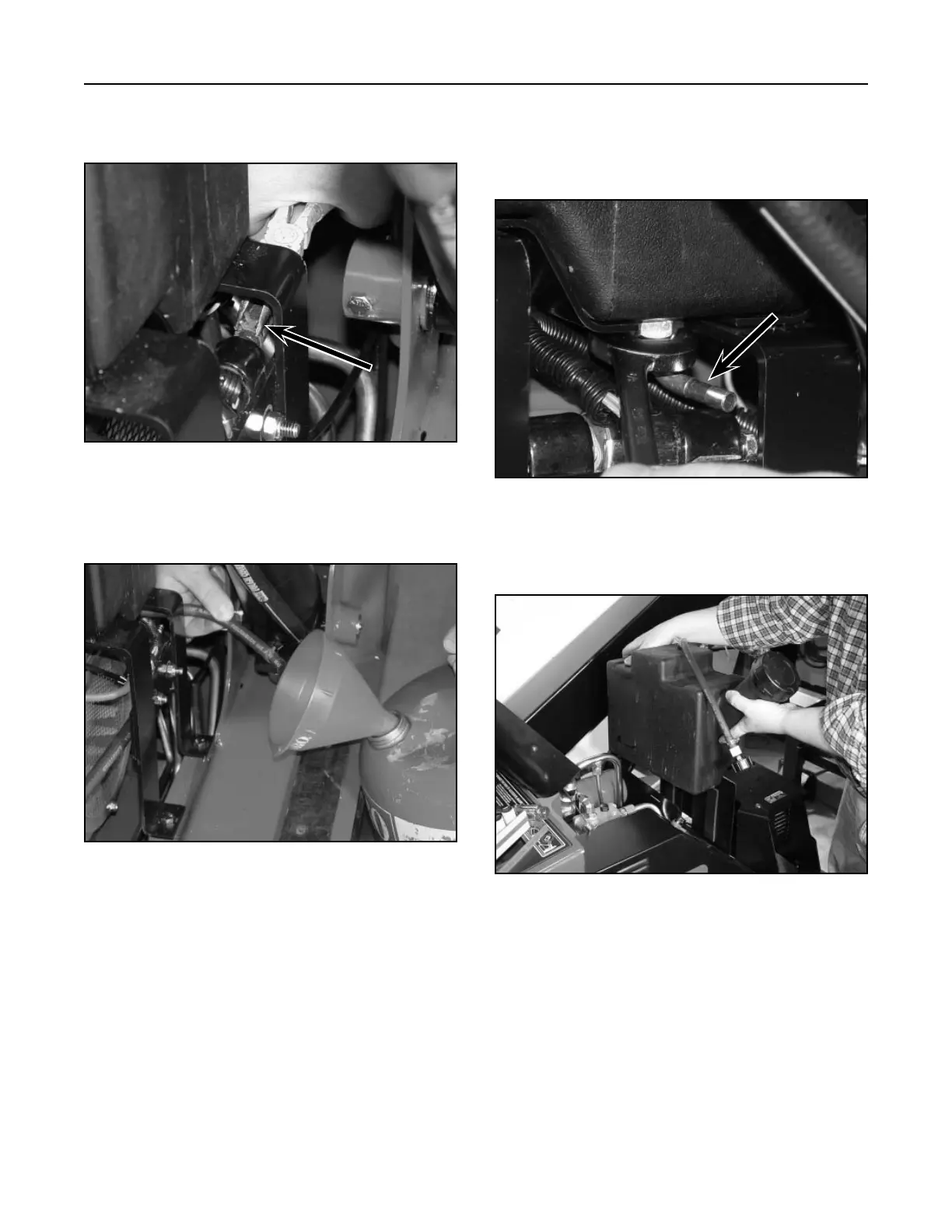

7. Remove the fuel line from the fuel tank fitting.
With a wrench, turn the fuel tank fitting so it is
pointing out toward the left side of the unit (Fig.
070).
Figure 070 DSC-1137
8. Remove the fuel tank from the unit (Fig. 071).
Figure 071 DSC-1139
5. Disconnect the fuel line located on fuel shut off
valve that goes to the fuel tank (Fig. 068).
Figure 068 DSC-1133
6. Drain the fuel tank (Fig. 069).
Figure 069 DSC-1134
